Brand Name:Dahai
Condition:New
Applicable Industries:Machinery Repair Shops, Construction works
Marketing Type:New Product 2022
Size:standard

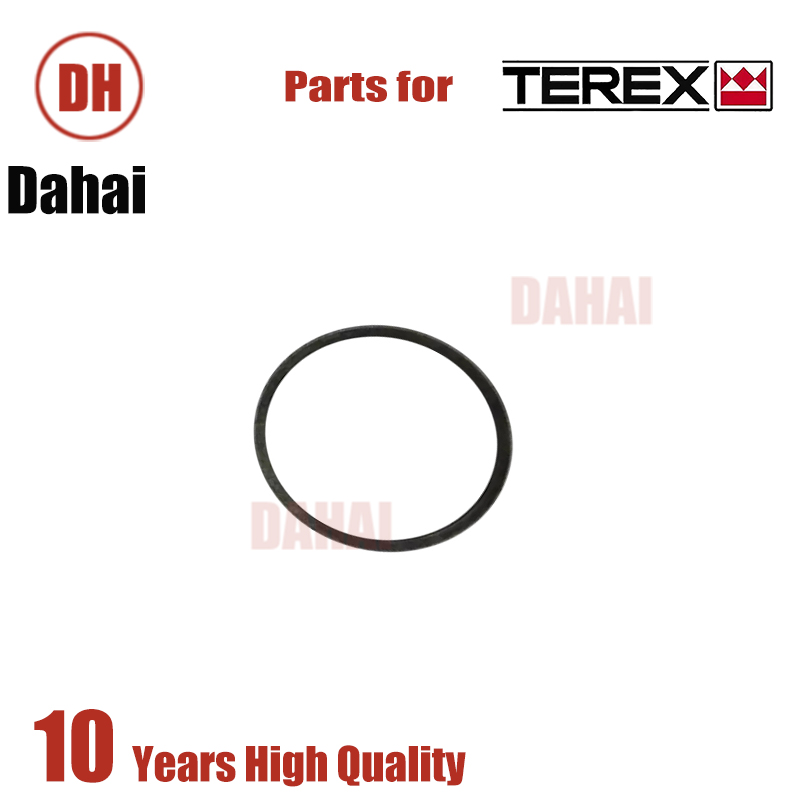

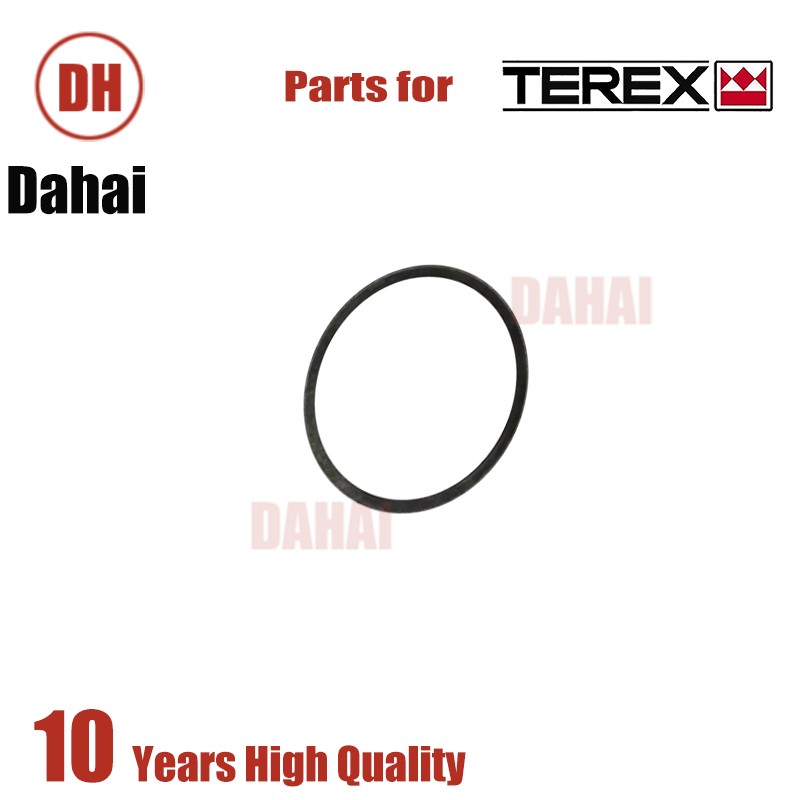

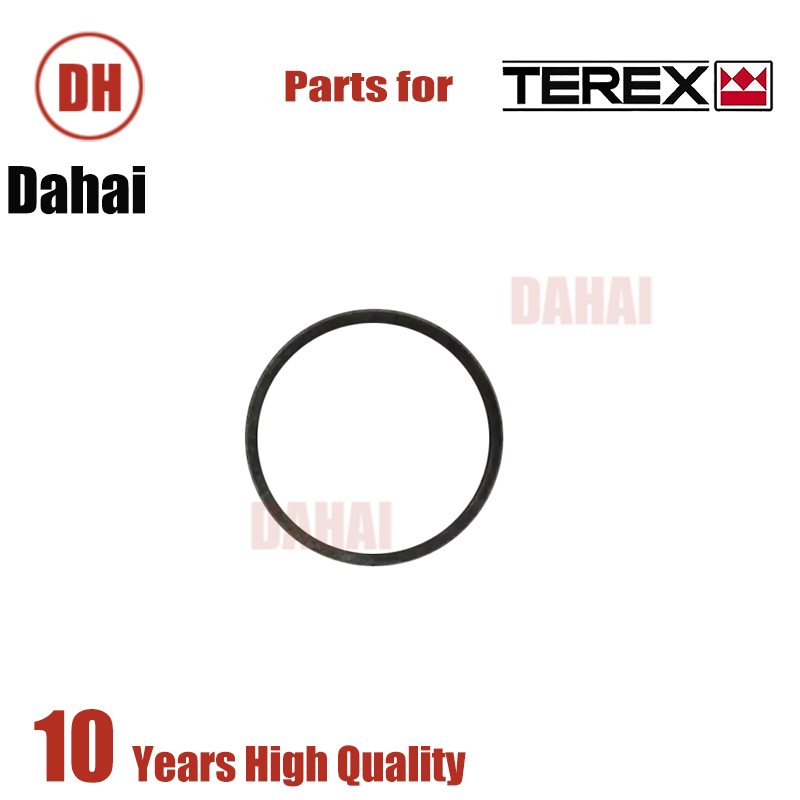

OEM Part Number: 9074668
Application:TEREX DUMP TRUCK,TR100,TR60,TR35,3305,3307
Engine:Commins K38
![](/Uploads/image/20220817/20220817164930_64313.jpg)
![](/Uploads/image/20220817/20220817164941_13004.jpg)
![](/Uploads/image/20220817/20220817165618_68373.jpg)

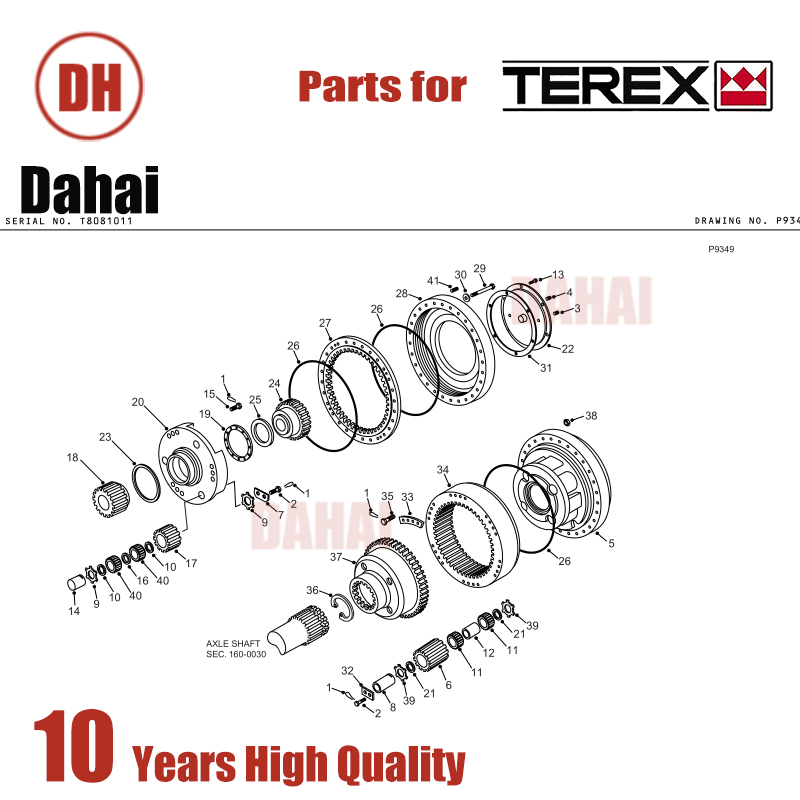

001 ASR 09113457 LOCKWIRE
002 028 15019509 BOLT DRILL HEAD 0.50
003 002 09008525 PLUG-MAGNETIC
004 002 00273469 PLUG
005 002 15009631 CARRIER-PLANETARY
006 008 15019510 PINION-PLANETARY
007 006 15233274 RETAINER
008 008 15233267 PIN-PLANETARY
009 012 15232937 PLATE-THRUST
010 012 09074668 SPACER
011 016 15238327 BEARING
012 008 15238323 SPACER-BEARING
013 012 00454910 BOLT
014 006 15233266 PIN-PLANETARY
015 024 15019502 BOLT DRILL HEAD 0.38
016 006 09074670 SPACER
A 017 006 15238317 PLANET PINION-FIRST
018 002 15019484 PINION-SUN
019 002 15019492 PLATE-RETAINER
A 020 002 15236593 CARRIER-PLANTARY
021 016 15238322 SPACER-THRUST
022 002 15233271 COVER-PLANETARY
023 002 15019519 WASHER-THRUST
A 024 002 15238319 SUN PINION
A 025 002 15245290 WASHER-THRUST
026 ASR 09125576 O-RING-BULK
027 002 15228596 RING-GEAR
028 002 15233268 COVER CARRIER
029 056 09430309 BOLT
030 056 09250715 WASHER-HARDENED
031 002 09141863 O RING
032 008 15233269 RETAINER
033 012 15019494 RETAINER
034 002 15019483 RING-GEAR
035 048 15019502 BOLT DRILL HEAD 0.38
036 001 09413420 RING-SNAP
037 002 15019482 CARRIER-RING GEAR
038 036 09433576 NUT
039 016 15246062 WASHER-THRUST
040 012 15015363 BEARING
![](/Uploads/image/20220817/20220817165642_86523.png)
![](/Uploads/image/20220817/20220817165654_28905.jpg)
001 ASR 09113457 LOCKWIRE
002 028 15019509 BOLT DRILL HEAD 0.50
003 002 09008525 PLUG-MAGNETIC
004 002 00273469 PLUG
005 002 15009631 CARRIER-PLANETARY
006 008 15019510 PINION-PLANETARY
007 006 15233274 RETAINER
008 008 15233267 PIN-PLANETARY
009 012 15232937 PLATE-THRUST
010 012 09074668 SPACER
011 016 15238327 BEARING
012 008 15238323 SPACER-BEARING
013 012 00454910 BOLT
014 006 15233266 PIN-PLANETARY
015 024 15019502 BOLT DRILL HEAD 0.38
016 006 09074670 SPACER
A 017 006 15238317 PLANET PINION-FIRST
018 002 15019484 PINION-SUN
019 002 15019492 PLATE-RETAINER
A 020 002 15236593 CARRIER-PLANTARY
021 016 15238322 SPACER-THRUST
022 002 15233271 COVER-PLANETARY
023 002 15019519 WASHER-THRUST
A 024 002 15238319 SUN PINION
A 025 002 15245290 WASHER-THRUST
026 ASR 09125576 O-RING-BULK
027 002 15228596 RING-GEAR
028 002 15233268 COVER CARRIER
029 056 09430309 BOLT
030 056 09250715 WASHER-HARDENED
031 002 09141863 O RING
032 008 15233269 RETAINER
033 012 15019494 RETAINER
034 002 15019483 RING-GEAR
035 048 15019502 BOLT DRILL HEAD 0.38
036 001 09413420 RING-SNAP
037 002 15019482 CARRIER-RING GEAR
038 036 09433576 NUT
039 016 15246062 WASHER-THRUST
040 012 15015363 BEARING
