220 STEERING SYSTEM

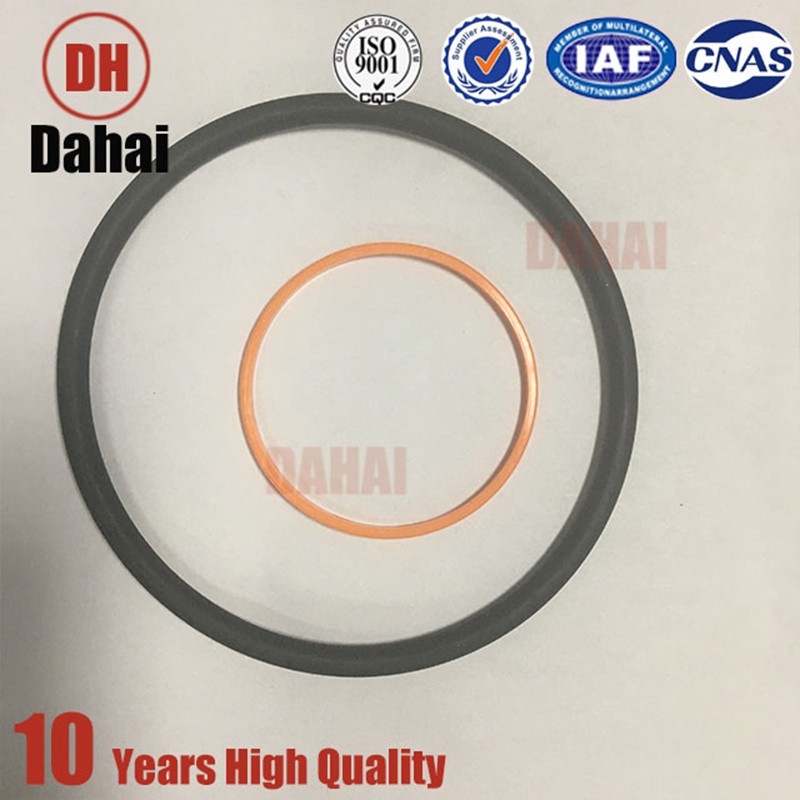

Terex OVERHAUL KIT 9396485

Place of Origin:China

Brand From:Japan

Brand Name:Dahai
Condition:New
Applicable Industries:Machinery Repair Shops, Construction works
Marketing Type:New Product 2022
Size:standard
OEM Part Number :9396485
Material:stainless
Application:TEREX DUMP TRUCK,TR100,TR60,TR35,3305,3307
Engine:Commins K38

  • Product Detail
  • Related products
  • steering system
Brand Name:Dahai
Condition:New
Applicable Industries:Machinery Repair Shops, Construction works
Marketing Type:New Product 2022
Size:standard
OEM Part Number :9396485
Material:stainless
Application:TEREX DUMP TRUCK,TR100,TR60,TR35,3305,3307

Engine:Commins K38



000 002 09014528 CYLINDER-STEERING
001 002 09014535 .TUBE
A 002 002 09167506 .BEARING-SPHERICAL
A 003 004 09425517 .RING-SNAP
004 002 09014542 .ROD
A 005 002 09256601 .WIPER
A 006 002 09014532 .SEAL & RING-BACKUP
007 008 00271565 .BOLT
008 002 09014540 .CAP-END
A 009 002 09256136 .RING-BACKUP
A 010 002 09141862 .O RING
011 002 09014537 .PISTON
A 012 004 09256074 .RING-PISTON
A 013 002 00274191 .LOCKNUT
014 016 00179883 BOLT
015 008 00103329 LOCKWASHER
016 004 09014285 PLATE
017 002 09261064 STUD-BALL
018 002 09018463 RING-RETAINER
019 002 09261065 BUSHING
NOTES:
A PARTS IN 09396485 OVERHAUL KIT

000 002 09014528 CYLINDER-STEERING
001 002 09014535 .TUBE
A 002 002 09167506 .BEARING-SPHERICAL
A 003 004 09425517 .RING-SNAP
004 002 09014542 .ROD
A 005 002 09256601 .WIPER
A 006 002 09014532 .SEAL & RING-BACKUP
007 008 00271565 .BOLT
008 002 09014540 .CAP-END
A 009 002 09256136 .RING-BACKUP
A 010 002 09141862 .O RING
011 002 09014537 .PISTON
A 012 004 09256074 .RING-PISTON
A 013 002 00274191 .LOCKNUT
014 016 00179883 BOLT
015 008 00103329 LOCKWASHER
016 004 09014285 PLATE
017 002 09261064 STUD-BALL
018 002 09018463 RING-RETAINER
019 002 09261065 BUSHING
NOTES:
A PARTS IN 09396485 OVERHAUL KIT
