190 ELECTRICAL SYSTEM

Dahai Japan Terex Lamp-Dir/Stop/Tail 15273644 for Terex TR100 Parts

Place of Origin: China
Brand From: Japan
Brand Name: Dahai
Part No.: 15273644
Product Name: Lamp-Dir/Stop/Tail
Warranty: 1 Year
Marketing Type: Ordinary Product
Quality: 100% Japan JIS Tested
Application: Terex Dump Truck, TR100, TR60, TR45, TR40
Payment iterm: Bank transfer, Western Union, Money Gram, Credit Card,Paypal
  • Product Detail
  • Related products
  • Electrical system

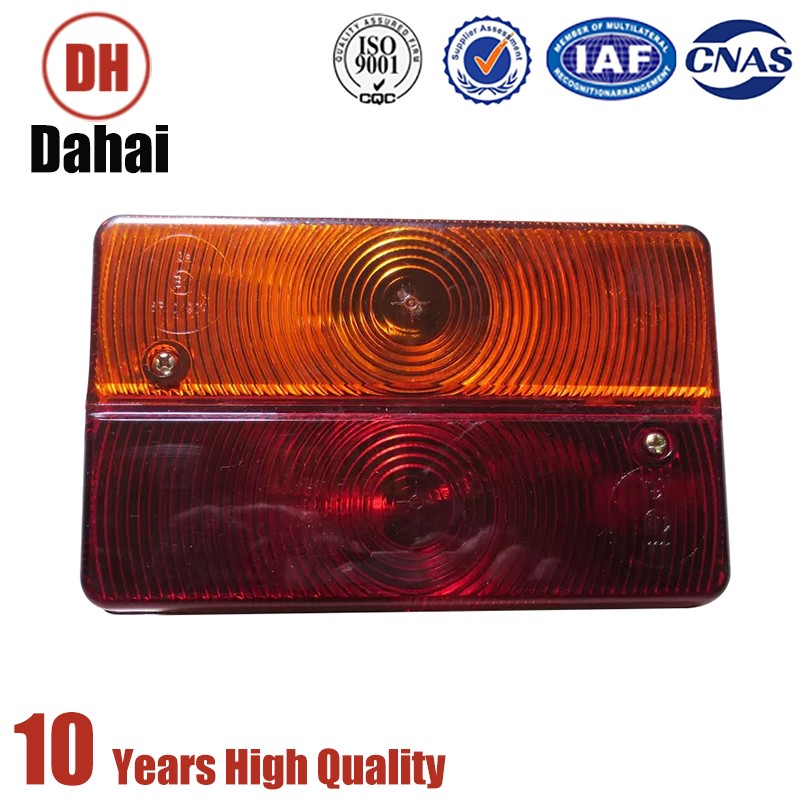

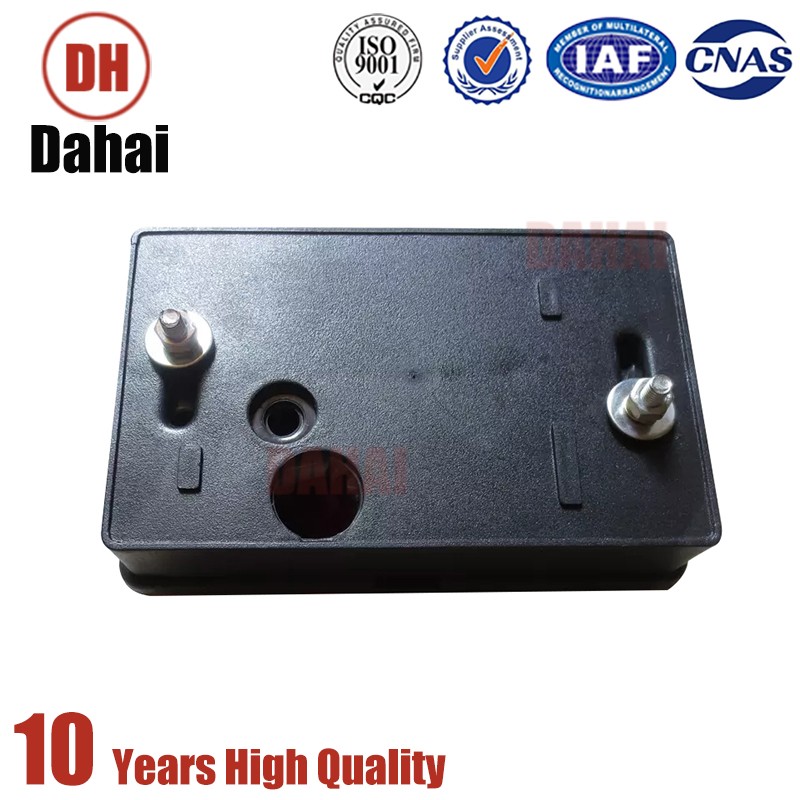

DAHAI Japan Terex  LAMP-DIR/STOP/TAIL 15258792 For TR100

Part No.: 15273644
Product Name: LAMP-DIR/STOP/TAIL
Application: Automobile chassis parts
Place of Origin: Guangdong, China
Brand Name: DAHAI
Warranty: 1 Years
Size: Standard
MOQ: 1pcs
Quality: 100% Tested
Certification: ISO9001 IAF CNAS
Payment: Union Paypal TT
Shipping Term: DHL UPS FEDEX TNT EMS
Packing: Neutral Packing or According to Customer Requirements
Delivery time: 7 Days

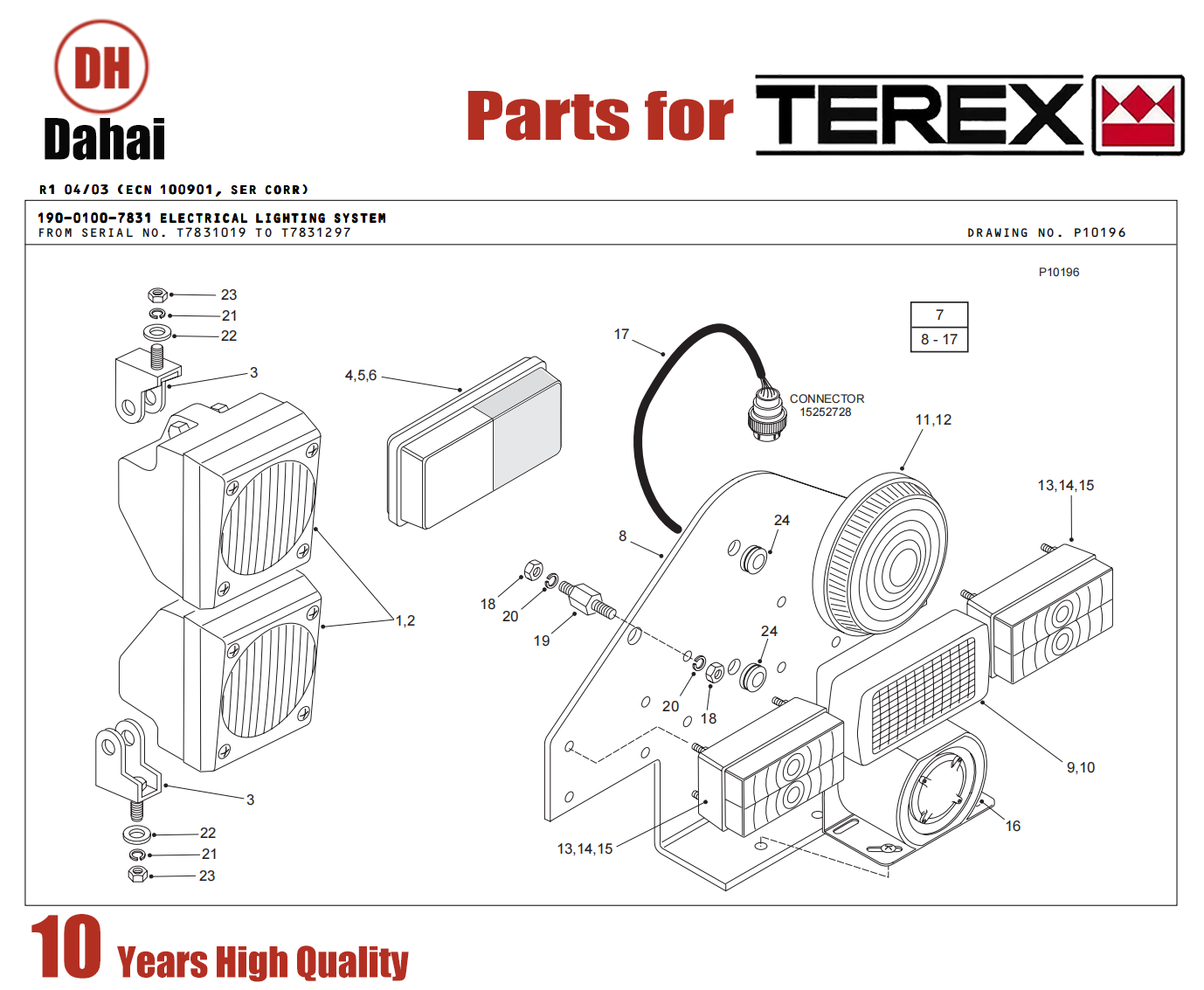

001 004 15230426 HEADLAMP
002 001 15271433 .BULB-H4
003 004 15230393 BRACKET-HEADLAMP
004 002 15258783 LAMP-SIDE INDICATOR
005 002 15258873 .BULB
006 002 15258872 .BULB-24V 21W H/DUTY
007 001 15303141 PLATE ASSY-REAR LIGHT
008 001 15273640 .PLATE-LAMP MTG
009 001 15273641 .LAMP-REVERSE
010 001 15273642 ..BULB-24V 70W HALOGEN
011 001 15273643 .LAMP-RETARDER
012 001 00446914 ..BULB-24V 21W H/DUTY
013 002 15273644 .LAMP-DIR/STOP/TAIL
014 002 15258872 ..BULB-24V 21W H/DUTY
015 002 15271432 ..BULB-24V 5/21W H/DUTY
016 001 15273645 .ALARM-REVERSE
017 001 15273718 .HARNESS-REAR LIGHTS
018 008 00102634 NUT
019 004 09004006 SHOCK MOUNT
020 008 00103320 LOCKWASHER
021 004 00108580 LOCKWASHER
022 004 00106263 WASHER
023 004 00102635 NUT

024 002 00117966 GROMMET

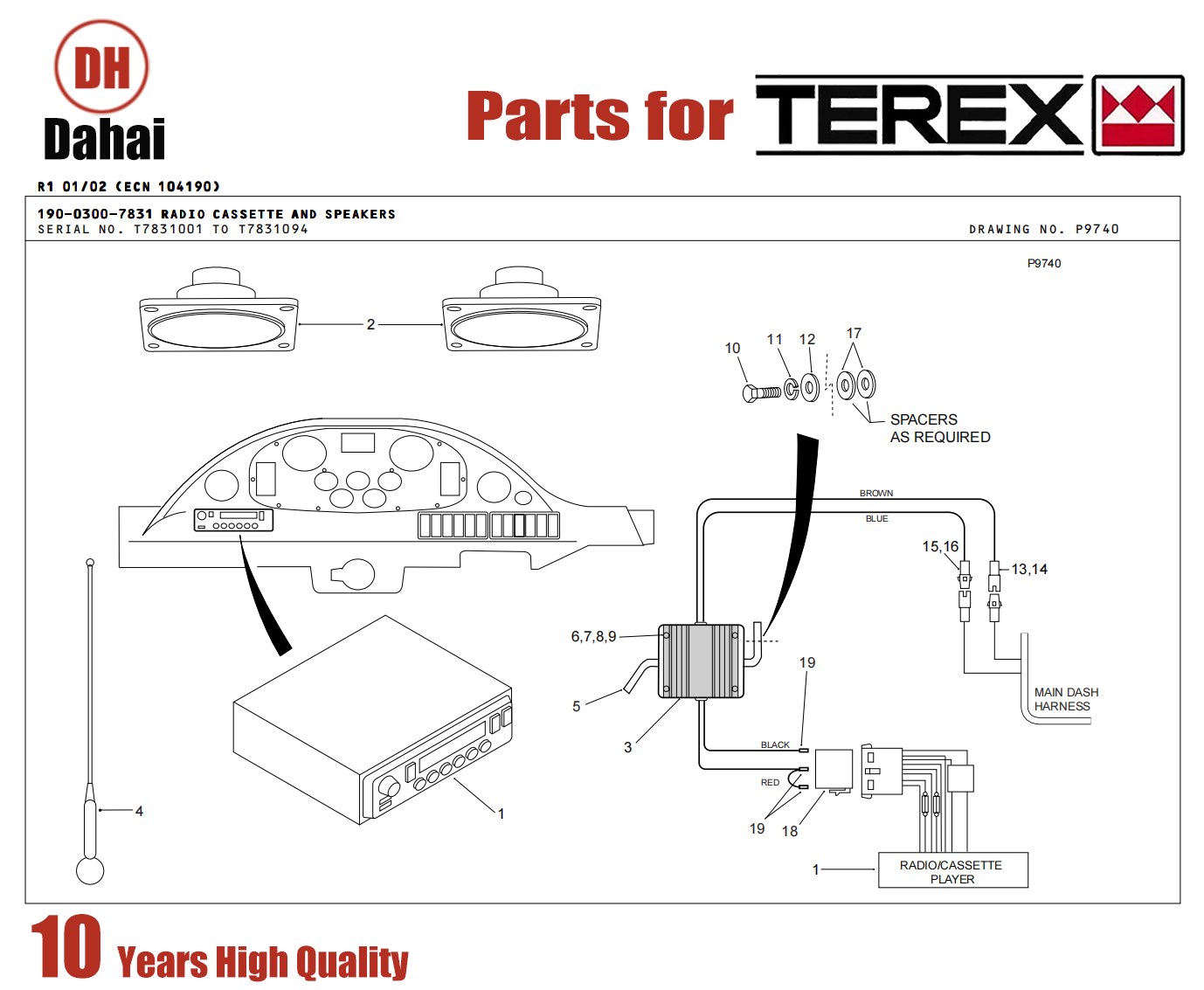

001 001 15257196 RADIO/CASSETTE-12V
002 002 15256599 SPEAKER
003 001 15253600 VOLTAGE-CONVERTOR
004 001 15229893 AERIAL
005 001 15301922 BRACKET ASSEMBLY
006 004 00100751 SCREW
007 004 00106496 LOCKWASHER
008 004 00114986 WASHER
009 004 00103092 NUT
010 001 06350850 SCREW
011 001 00108580 LOCKWASHER
012 001 00106263 WASHER
013 001 15256587 CONNECTOR-1 PIN
014 001 15248362 PIN-TERMINAL 28/0
015 001 15256588 CONNECTOR-1 SOCKET
016 001 15248363 TERMINAL-SOCKET
017 003 09060202 WASHER-HARDENED
018 001 15257248 CONNECTOR
019 003 15257252 TERMINAL
