Brand Name:Dahai
Condition:New
Applicable Industries:Machinery Repair Shops, Construction works
Marketing Type:New Product 2022
Size:standard
OEM Part Number :15500256

Material:stainless
Application:TEREX DUMP TRUCK,TR100,TR60,TR35,3305,3307

Engine:Commins K38

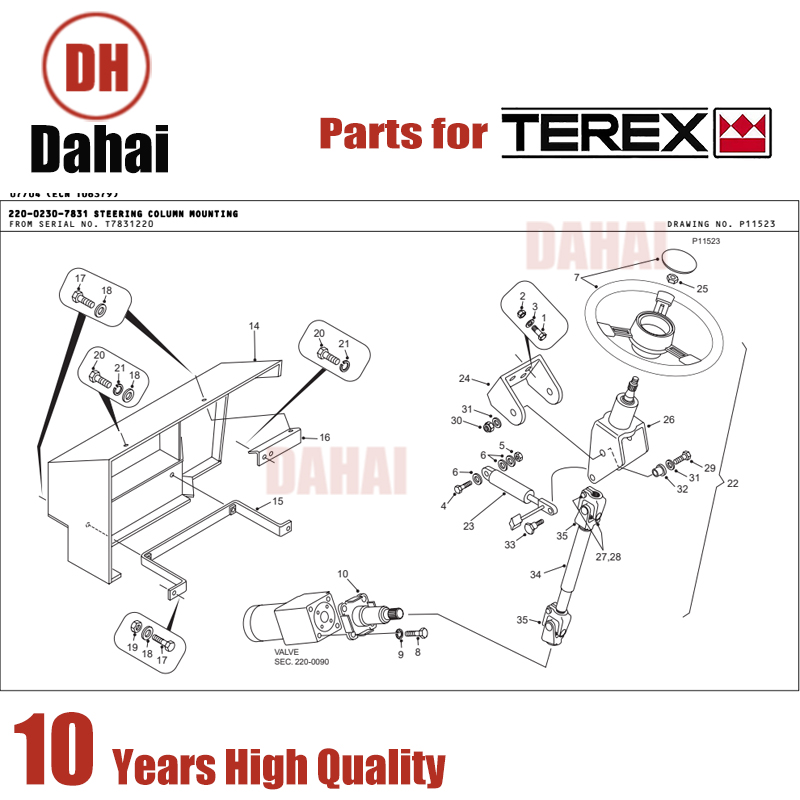

 001 004 06351030 BOLT
 002 004 06431001 NUT
 003 004 07151020 WASHER
 004 001 06350830 BOLT
 005 001 06470801 NUT
 006 003 07161030 LOCKWASHER
 007 001 15255304 STEERING WHEEL
 008 004 00179881 BOLT
 009 004 00103329 LOCKWASHER
 010 001 15234744 COLUMN-STEERING
A 011 000 NOT USED
A 012 000 NOT USED
A 013 000 NOT USED
 014 001 15301675 COVER ASSY-ORBITROL
 015 001 15301674 BRACKET ASSY
 016 001 15300829 BRACKET ASSY
 017 005 06351030 BOLT
 018 006 09060202 WASHER
 019 002 06431001 NUT
 020 003 06350825 BOLT
 021 003 07160830 LOCKWASHER
 022 001 15318692 STEERING COLUMN ASSY
 023 001 15275116 .GAS STRUT ASSY
 024 001 15275117 .BRACKET ASSY
 025 001 15275118 .NUT
 026 001 15275119 .COLUMN ASSY-TOP NSS
 027 002 06350835 .BOLT NSS
 028 002 06470801 .NUT-NYLOC NSS
 029 002 06351040 .BOLT
 030 002 06471001 .NUT-NYLOC
 031 004 07151020 .WASHER
 032 002 15274171 .BUSH-PIVOT
 033 001 15275125 .SHOULDER BOLT
 034 001 15312261 .SLIDING JOINT ASSY
 035 002 15500256 ..JOINT ASSY
NOTES:
 A FOR TR100 REF ITEMS 11, 12 & 13 ARE NOT USED

 001 004 06351030 BOLT
 002 004 06431001 NUT
 003 004 07151020 WASHER
 004 001 06350830 BOLT
 005 001 06470801 NUT
 006 003 07161030 LOCKWASHER
 007 001 15255304 STEERING WHEEL
 008 004 00179881 BOLT
 009 004 00103329 LOCKWASHER
 010 001 15234744 COLUMN-STEERING
A 011 000 NOT USED
A 012 000 NOT USED
A 013 000 NOT USED
 014 001 15301675 COVER ASSY-ORBITROL
 015 001 15301674 BRACKET ASSY
 016 001 15300829 BRACKET ASSY
 017 005 06351030 BOLT
 018 006 09060202 WASHER
 019 002 06431001 NUT
 020 003 06350825 BOLT
 021 003 07160830 LOCKWASHER
 022 001 15318692 STEERING COLUMN ASSY
 023 001 15275116 .GAS STRUT ASSY
 024 001 15275117 .BRACKET ASSY
 025 001 15275118 .NUT
 026 001 15275119 .COLUMN ASSY-TOP NSS
 027 002 06350835 .BOLT NSS
 028 002 06470801 .NUT-NYLOC NSS
 029 002 06351040 .BOLT
 030 002 06471001 .NUT-NYLOC
 031 004 07151020 .WASHER
 032 002 15274171 .BUSH-PIVOT
 033 001 15275125 .SHOULDER BOLT
 034 001 15312261 .SLIDING JOINT ASSY
 035 002 15500256 ..JOINT ASSY
NOTES:
 A FOR TR100 REF ITEMS 11, 12 & 13 ARE NOT USED
