Brand Name:Dahai
Condition:New
Applicable Industries:Machinery Repair Shops, Construction works
Marketing Type:New Product 2022
Size:standard
OEM Part Number :9270713

Material:stainless
Application:TEREX DUMP TRUCK,TR100,TR60,TR35,3305,3307

Engine:Commins K38

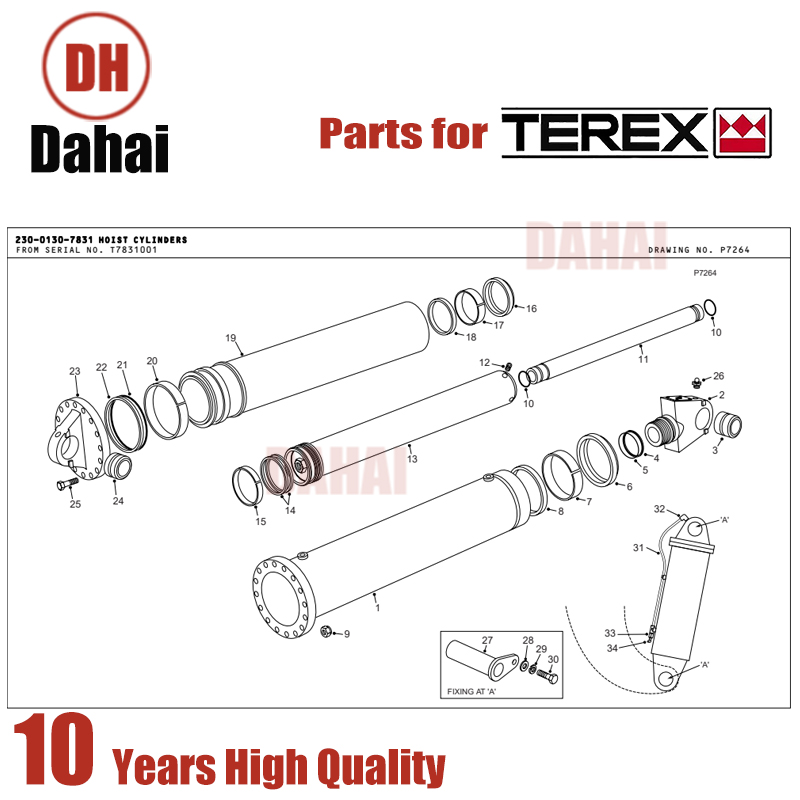

000 001 15227019 CYLINDER ASSEMBLY
 001 001 09014653 .TUBE
 002 001 15231390 .END ASSY
A 003 001 09014649 ..BUSHING
A 004 001 09014362 .RING-BACKUP
A 005 001 09014593 .O RING
A 006 001 09256608 .WIPER
A 007 001 06944596 .RING-WEAR

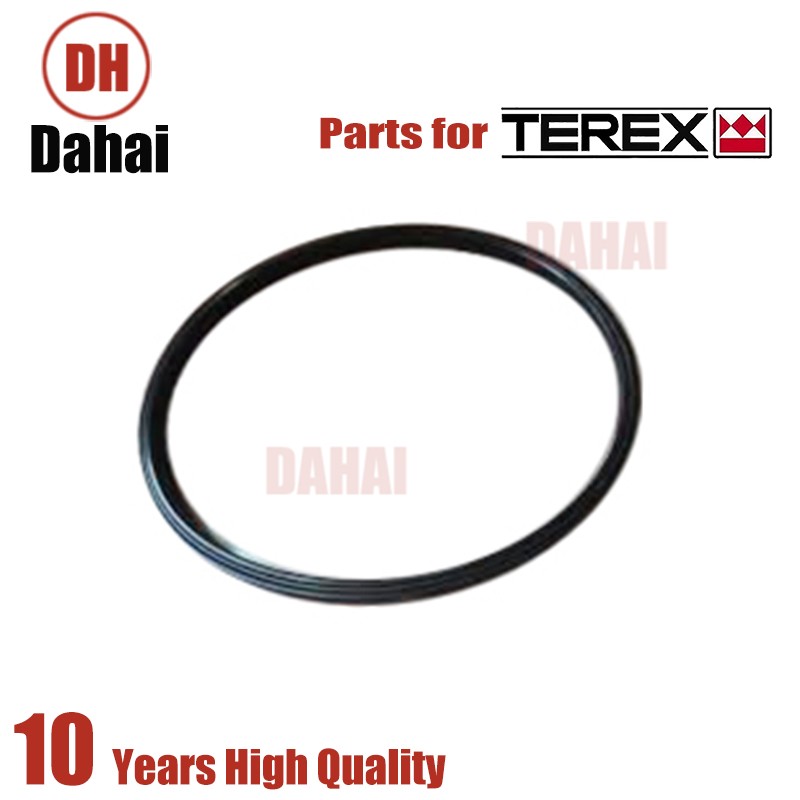

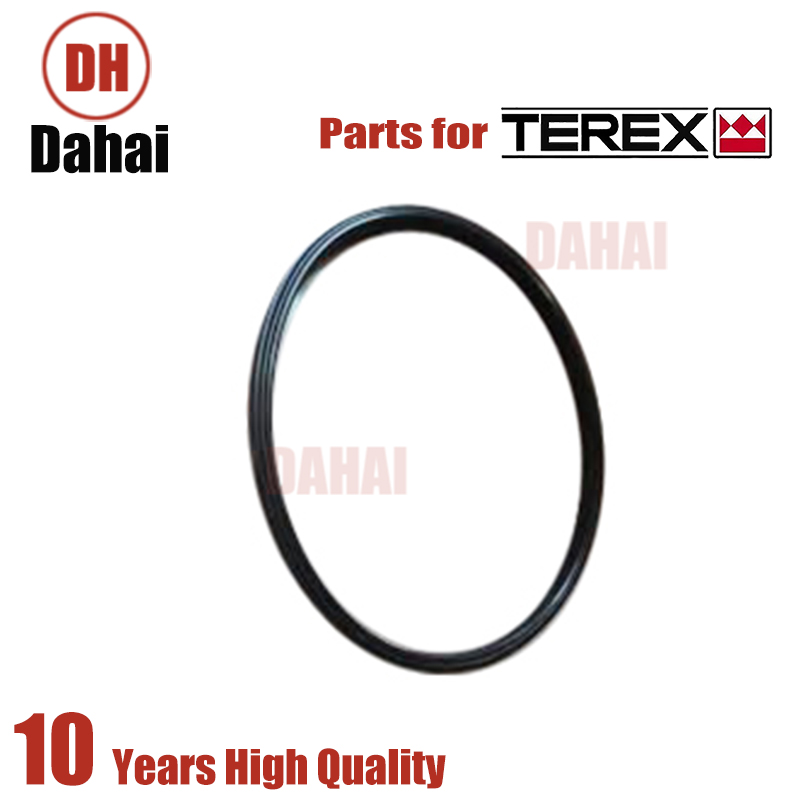

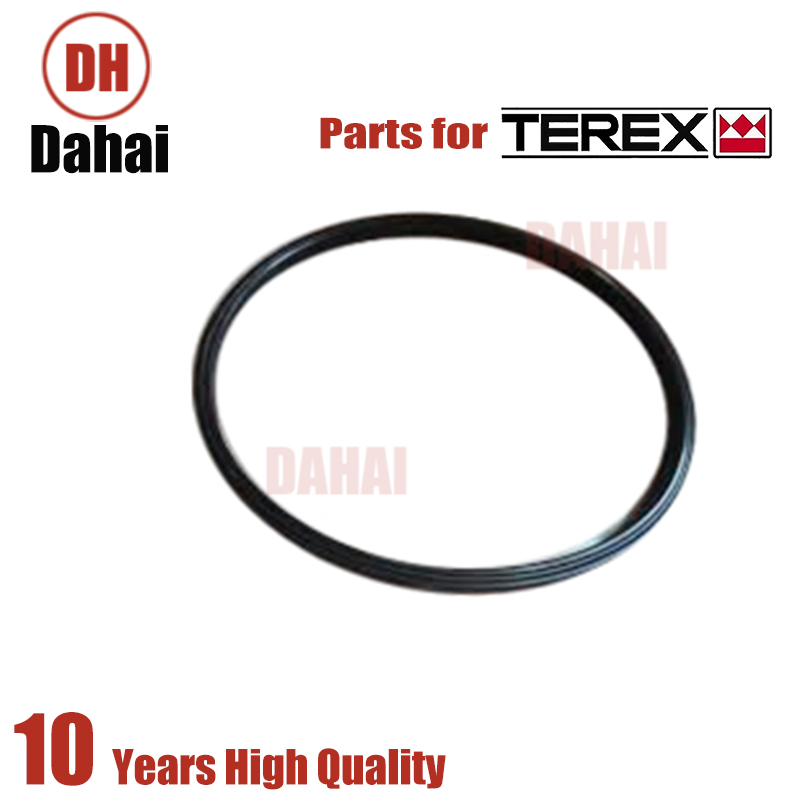

A 008 001 09270713 .SEAL
 009 016 09354243 .LOCKNUT
A 010 002 15232053 .SEAL-T
 011 001 15232056 .TUBE
 012 004 15227029 .SCREW-SET
 013 001 15232597 .TUBE ASSY
A 014 002 09014633 .RING-PISTON
A 015 001 09014131 .RING-WEAR
A 016 001 15227030 .WIPER
A 017 002 15227031 .RING-WEAR
A 018 001 15227032 .SEAL
 019 001 15227146 .TUBE ASSY
A 020 001 09018420 .RING-WEAR
A 021 001 09014636 .O RING
A 022 001 09014635 .RING-BACKUP
 023 001 09014648 .BASE ASSEMBLY
 024 001 09014649 ..BUSHING
 025 016 00223442 .BOLT
 026 001 09411010 FITTING-GREASE
 027 004 09018418 PIN
 028 004 09217321 WASHER
 029 004 00103329 LOCKWASHER
 030 004 00179883 BOLT
 031 002 09256240 HOSE ASSY
 032 002 00454096 ELBOW
 033 002 00187394 COUPLING
 034 002 09411019 NIPPLE-GREASE
NOTES:
A PARTS IN 15265278 OVERHAUL KIT

000 001 15227019 CYLINDER ASSEMBLY
 001 001 09014653 .TUBE
 002 001 15231390 .END ASSY
A 003 001 09014649 ..BUSHING
A 004 001 09014362 .RING-BACKUP
A 005 001 09014593 .O RING
A 006 001 09256608 .WIPER
A 007 001 06944596 .RING-WEAR
A 008 001 09270713 .SEAL
 009 016 09354243 .LOCKNUT
A 010 002 15232053 .SEAL-T
 011 001 15232056 .TUBE
 012 004 15227029 .SCREW-SET
 013 001 15232597 .TUBE ASSY
A 014 002 09014633 .RING-PISTON
A 015 001 09014131 .RING-WEAR
A 016 001 15227030 .WIPER
A 017 002 15227031 .RING-WEAR
A 018 001 15227032 .SEAL
 019 001 15227146 .TUBE ASSY
A 020 001 09018420 .RING-WEAR
A 021 001 09014636 .O RING
A 022 001 09014635 .RING-BACKUP
 023 001 09014648 .BASE ASSEMBLY
 024 001 09014649 ..BUSHING
 025 016 00223442 .BOLT
 026 001 09411010 FITTING-GREASE
 027 004 09018418 PIN
 028 004 09217321 WASHER
 029 004 00103329 LOCKWASHER
 030 004 00179883 BOLT
 031 002 09256240 HOSE ASSY
 032 002 00454096 ELBOW
 033 002 00187394 COUPLING
 034 002 09411019 NIPPLE-GREASE
NOTES:
A PARTS IN 15265278 OVERHAUL KIT
