Brand Name:Dahai
Condition:New
Applicable Industries:Machinery Repair Shops, Construction works
Marketing Type:New Product 2022
Size:standard
OEM Part Number: 9031475
Application:TEREX DUMP TRUCK,TR100,TR60,TR35,3305,3307
Engine:Commins K38
![](/Uploads/image/20220805/20220805114159_65391.jpg)
![](/Uploads/image/20220805/20220805114207_98398.jpg)
![](/Uploads/image/20220805/20220805114359_73429.jpg)

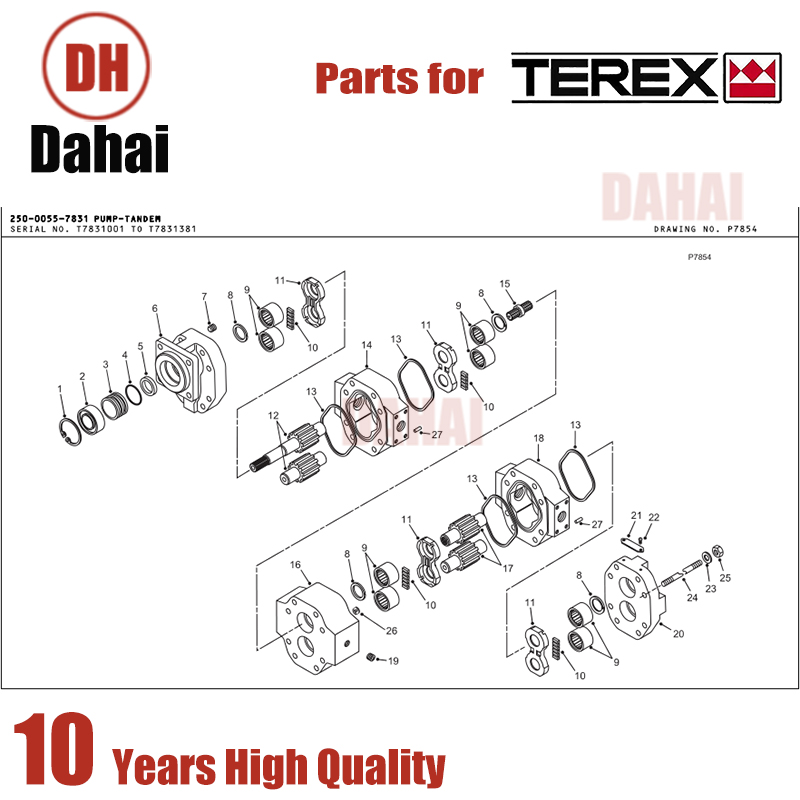

000 001 15249488 PUMP ASSY
001 001 09413385 .RING-SNAP
002 001 09036076 .SPACER
003 001 09055968 .RETAINER
004 001 09035829 .O RING
005 001 09031475 .SEAL
006 001 09054021 .COVER
007 001 09038111 .SCREW-SET
008 004 09036077 .SEAL
009 008 09021459 .BEARING
010 024 09036083 .SEAL-POCKET
011 004 09054024 .PLATE
012 001 09054806 .GEAR-SET
013 004 09036082 .SEAL-GASKET
014 001 09054022 .HOUSING
015 001 09036072 .SHAFT
016 001 09059900 .CARRIER
017 001 09054807 .GEAR-SET
018 001 09054022 .HOUSING
019 001 09399643 .PLUG
020 001 09054020 .COVER
021 001 15268670 .PLATE-NAME
022 002 09398848 .SCREW
023 008 09034501 .WASHER
024 008 15268668 .STUD
025 008 09411566 .NUT
026 008 15268669 .RING-TOLERANCE
027 008 09054023 .PIN
![](/Uploads/image/20220805/20220805114427_30100.jpg)
![](/Uploads/image/20220805/20220805114619_98044.jpg)
000 001 15249488 PUMP ASSY
001 001 09413385 .RING-SNAP
002 001 09036076 .SPACER
003 001 09055968 .RETAINER
004 001 09035829 .O RING
005 001 09031475 .SEAL
006 001 09054021 .COVER
007 001 09038111 .SCREW-SET
008 004 09036077 .SEAL
009 008 09021459 .BEARING
010 024 09036083 .SEAL-POCKET
011 004 09054024 .PLATE
012 001 09054806 .GEAR-SET
013 004 09036082 .SEAL-GASKET
014 001 09054022 .HOUSING
015 001 09036072 .SHAFT
016 001 09059900 .CARRIER
017 001 09054807 .GEAR-SET
018 001 09054022 .HOUSING
019 001 09399643 .PLUG
020 001 09054020 .COVER
021 001 15268670 .PLATE-NAME
022 002 09398848 .SCREW
023 008 09034501 .WASHER
024 008 15268668 .STUD
025 008 09411566 .NUT
026 008 15268669 .RING-TOLERANCE
027 008 09054023 .PIN
