Brand Name:Dahai
Condition:New
Applicable Industries:Machinery Repair Shops, Construction works
Marketing Type:New Product 2022
Size:standard
OEM Part Number: 15251002
Application:TEREX DUMP TRUCK,TR100,TR60,TR35,3305,3307
Engine:Commins K38
![](/Uploads/image/20220826/20220826154016_89867.jpg)

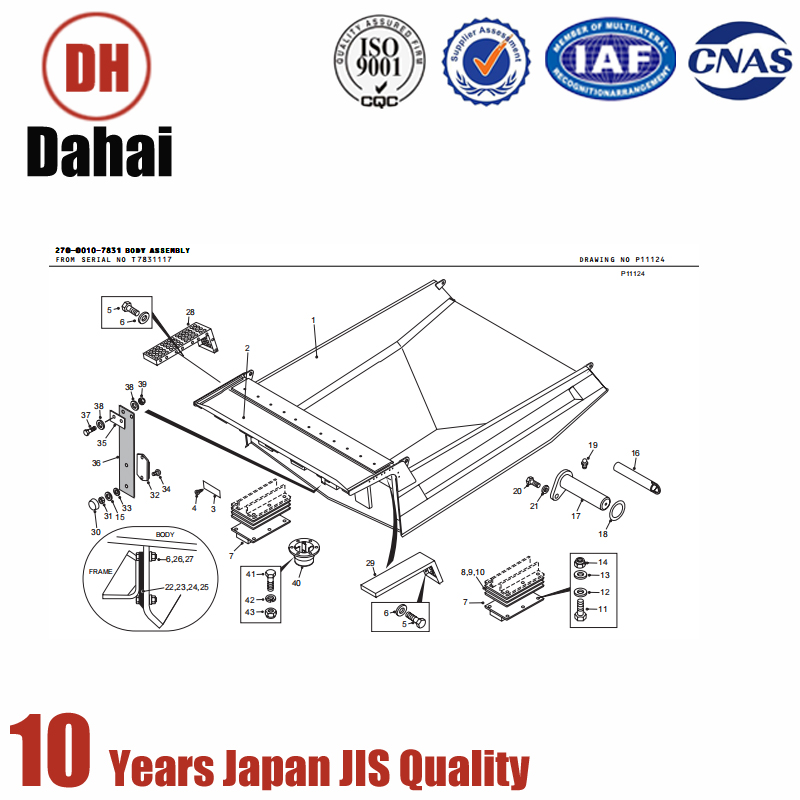

001 001 15312862 BODY ASSEMBLY
002 001 15301759 .CAB GUARD ASSY
003 001 15250090 ..DECAL-ROPS/FOPS
004 004 00145378 ..SCREW
005 018 00271558 BOLT
006 018 09191596 WASHER
007 010 15301850 BODY PAD-130MM WIDE T7831117 T7831368
007 010 15338589 BODY PAD-130MM WIDE T7831369
008 ASR 15251929 SHIM-10 S.W.G.
009 ASR 15251930 SHIM-18 S.W.G.
010 ASR 15302161 SHIM-10MM
011 060 00179847 BOLT
012 060 09060202 WASHER
013 060 00106263 WASHER
014 060 00274208 LOCKNUT
015 002 15234727 WASHER
016 002 15244862 PIN
017 002 15249677 PIN-HINGE
018 ASR 15251002 SHIM
019 002 09411010 FITTING-GREASE
020 002 00271607 BOLT
021 002 09176228 WASHER-HARDENED
022 ASR 15302743 BODY GUIDE SHIM (6MM)
023 ASR 15302744 BODY GUIDE SHIM (8MM)
024 ASR 15302745 BODY GUIDE SHIM (10MM)
025 ASR 15302746 BODY GUIDE SHIM (12.5MM)
026 008 00223436 BOLT
027 008 09411566 NUT
028 001 15312480 GUARD ASSY-RH
029 001 09061852 GUARD ASSY-LH
030 002 15234728 CAP
031 002 00110633 NUT
032 001 15309615 REFLECTOR
033 002 00103338 WASHER
034 002 00110501 SCREW
035 001 15301424 PLATE
036 001 15301423 RUBBER STRIP
037 002 00179843 BOLT
038 004 00106263 WASHER
039 002 00274208 LOCKNUT
![](/Uploads/image/20220826/20220826154417_40945.png)
001 001 15312862 BODY ASSEMBLY
002 001 15301759 .CAB GUARD ASSY
003 001 15250090 ..DECAL-ROPS/FOPS
004 004 00145378 ..SCREW
005 018 00271558 BOLT
006 018 09191596 WASHER
007 010 15301850 BODY PAD-130MM WIDE T7831117 T7831368
007 010 15338589 BODY PAD-130MM WIDE T7831369
008 ASR 15251929 SHIM-10 S.W.G.
009 ASR 15251930 SHIM-18 S.W.G.
010 ASR 15302161 SHIM-10MM
011 060 00179847 BOLT
012 060 09060202 WASHER
013 060 00106263 WASHER
014 060 00274208 LOCKNUT
015 002 15234727 WASHER
016 002 15244862 PIN
017 002 15249677 PIN-HINGE
018 ASR 15251002 SHIM
019 002 09411010 FITTING-GREASE
020 002 00271607 BOLT
021 002 09176228 WASHER-HARDENED
022 ASR 15302743 BODY GUIDE SHIM (6MM)
023 ASR 15302744 BODY GUIDE SHIM (8MM)
024 ASR 15302745 BODY GUIDE SHIM (10MM)
025 ASR 15302746 BODY GUIDE SHIM (12.5MM)
026 008 00223436 BOLT
027 008 09411566 NUT
028 001 15312480 GUARD ASSY-RH
029 001 09061852 GUARD ASSY-LH
030 002 15234728 CAP
031 002 00110633 NUT
032 001 15309615 REFLECTOR
033 002 00103338 WASHER
034 002 00110501 SCREW
035 001 15301424 PLATE
036 001 15301423 RUBBER STRIP
037 002 00179843 BOLT
038 004 00106263 WASHER
039 002 00274208 LOCKNUT
