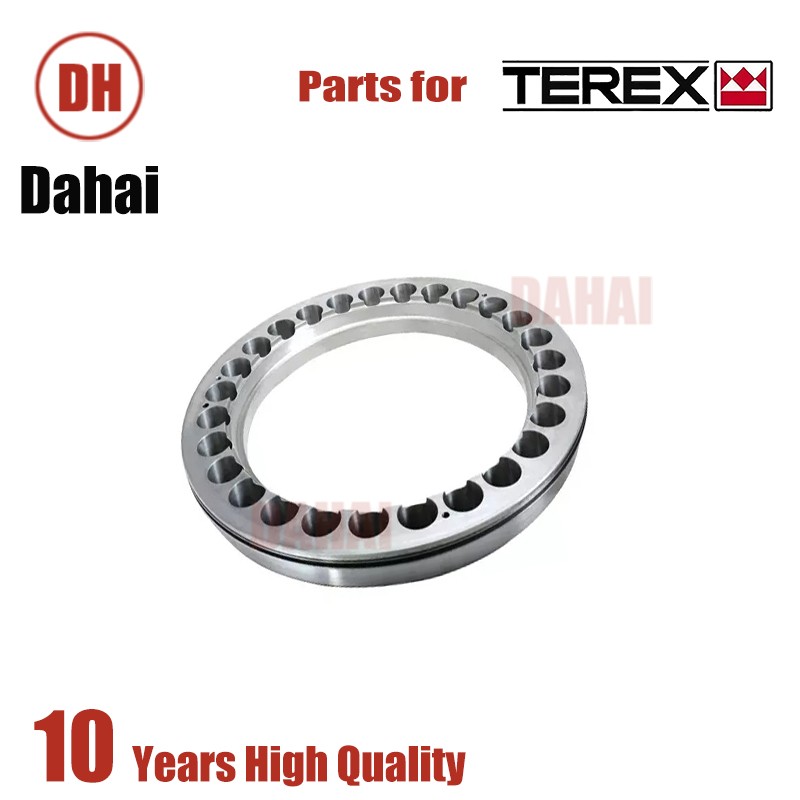

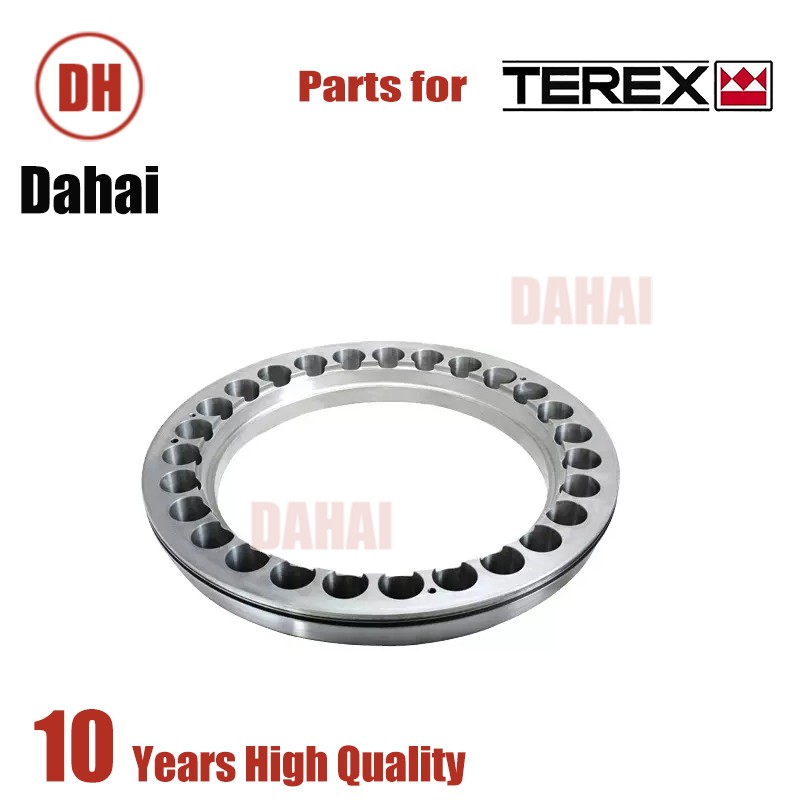

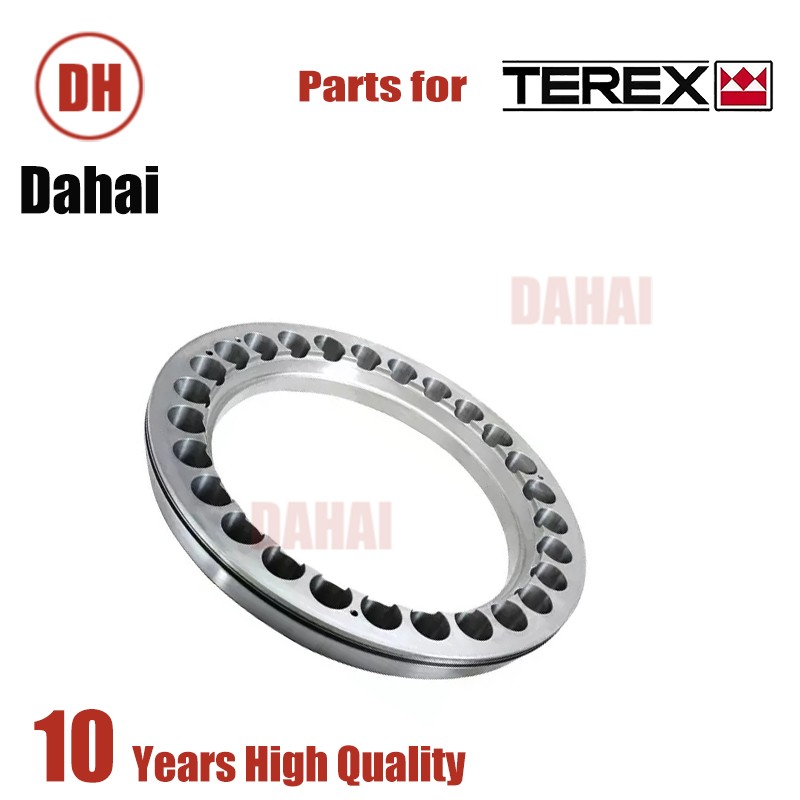

DAHAI Japan Parking Piston15302125 for Terex TR100 Parts

Brand Name:Dahai
Condition:New
Applicable Industries:Machinery Repair Shops, Construction works
Marketing Type:New Product 2022
Size:standard
OEM Part Number:15302125

Application:TEREX DUMP TRUCK,TR100,TR60,TR35,3305,3307

Engine:Commins K38

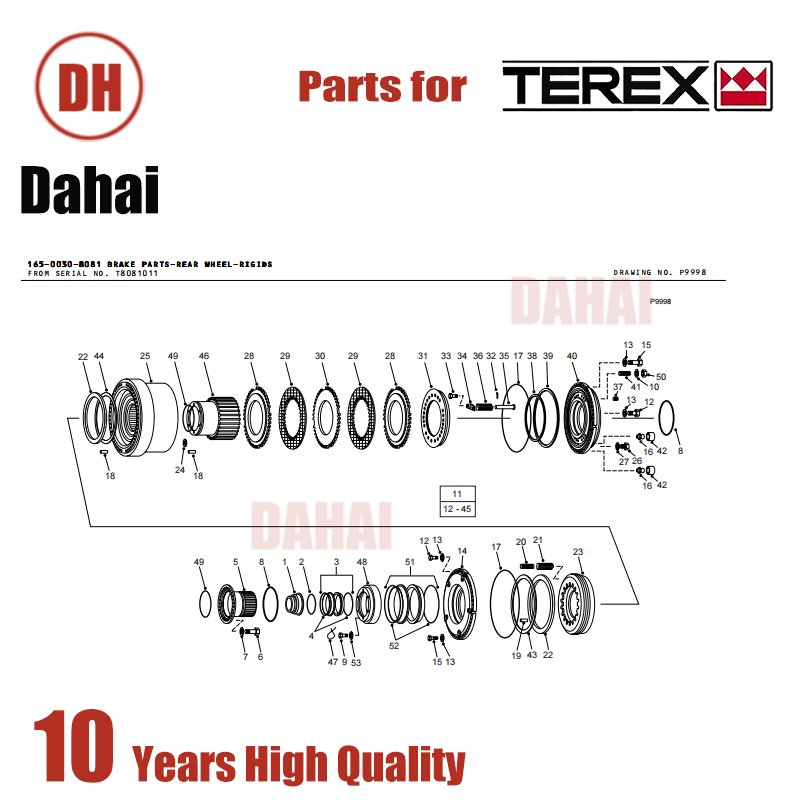

001 002 15233275 SEAL HOUSING

002 002 15302757 O-RING

003 002 15302752 SEAL ASSY-FACE TYPE

004 004 15272374 .RING-TORIC

005 002 09064938 DRIVER WHEEL

006 060 00223493 BOLT

007 060 09019631 WASHER-HARDENED

008 004 15302758 O-RING

009 024 09072627 BOLT

010 056 15310256 WASHER HARDENED SPECIA

011 002 15307380 BRAKE ASSY

012 196 00223437 .BOLT

013 216 09065332 .WASHER

014 002 15247047 .SRING HOUSING

015 020 09068505 .SCREW

016 008 02276784 .SCREW-BLEED

A 017 004 15258053 .SEAL-O RING

018 004 00784094 .PIN-DOWEL

019 002 00784088 .PIN-DOWEL

020 054 09065306 .SPRING

021 054 09065305 .SPRING

B 022 002 15303608 .SEAL ASSY-PISTON

023 002 15302125 .PISTON-PARKING

A 024 006 15258054 .SEAL-O RING

025 002 15302126 .DISC HOUSING

026 004 09183205 .PLUG

027 004 00274248 ..O-RING

028 004 15302798 .DAMPER ASSY

029 026 15302796 .DISC-FRICTION

030 024 15302797 .PLATE-SPLINED

031 002 15231497 .PISTON-SERVICE

032 048 00936559 .PIN

033 096 00179814 .BOLT

034 048 09064810 .PLATE-RETAINER

035 048 09064750 .PIN-RETAINING

036 048 09065315 .SPRING

037 004 00444692 .PLUG

A 038 002 15258051 .SEAL-D RING

A 039 002 15258038 .SEAL-D RING

040 002 15307381 .PISTON HOUSING ASSY
