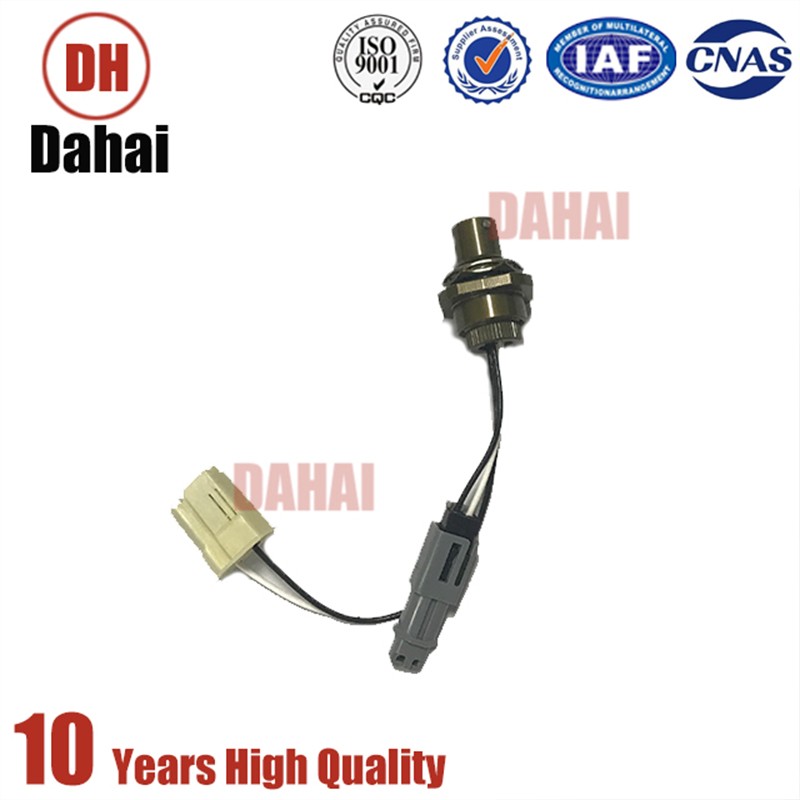

DAHAI Brand Spare Part Heavy Duty Truck Parts Automobile chassis Gearbox locking harness 29536509 for terex Dump truck
Brand Name:Dahai
Condition:New
Applicable Industries:Machinery Repair Shops, Construction works
Marketing Type:New Product 2022
Size:standard
OEM Part Number :29536509
Material:stainless
Application:TEREX DUMP TRUCK,TR100,TR60,TR35,3305,3307
Engine:Commins K38
![](/Uploads/image/20220805/20220805135602_26010.jpg)
![](/Uploads/image/20220805/20220805135549_80974.jpg)
![](/Uploads/image/20220808/20220808095431_77564.jpg)

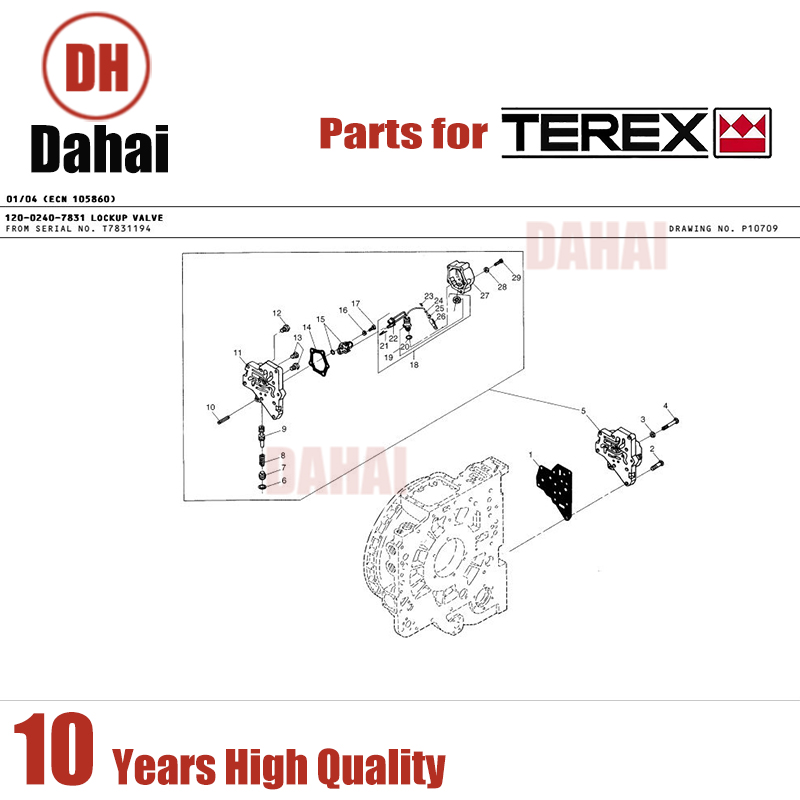

001 001 06880860 GASKET
002 005 09409231 BOLT
003 003 NLA WASHER
004 004 09409226 BOLT
005 001 29536480 VALVE-LOCKUP
006 001 06771005 .RING
007 001 06758543 .PLUG
008 001 06838520 .SPRING
009 001 06770023 .VALVE
010 001 00273921 .PIN
011 001 29527366 .BODY
012 001 29500034 .PLUG ASSY
013 002 29525044 .PLUG ASSY
014 001 23045876 .GASKET
015 001 23019734 .SOLENOID-12V
016 002 00103339 .WASHER
017 002 NLA .BOLT
018 001 29536509 .HARNESS ASSY
019 001 23046474 ..CONNECTOR-RECEPTACLE
020 001 23016455 ...SEAL RING
021 002 12052410 ..TERMINAL
022 001 12059716 ..CONNECTOR-BODY
023 001 12047664 ..LOCK
024 002 12047767 ..TERMINAL
025 001 12047662 ..CONNECTOR
026 001 12129691 ..SENSOR
027 001 NSS .COVER-SOLENOID
028 002 00103339 .WASHER
029 002 00454815 .BOLT
![](/Uploads/image/20220805/20220805102805_10150.jpg)
![](/Uploads/image/20220808/20220808095452_89049.jpg)
001 001 06880860 GASKET
002 005 09409231 BOLT
003 003 NLA WASHER
004 004 09409226 BOLT
005 001 29536480 VALVE-LOCKUP
006 001 06771005 .RING
007 001 06758543 .PLUG
008 001 06838520 .SPRING
009 001 06770023 .VALVE
010 001 00273921 .PIN
011 001 29527366 .BODY
012 001 29500034 .PLUG ASSY
013 002 29525044 .PLUG ASSY
014 001 23045876 .GASKET
015 001 23019734 .SOLENOID-12V
016 002 00103339 .WASHER
017 002 NLA .BOLT
018 001 29536509 .HARNESS ASSY
019 001 23046474 ..CONNECTOR-RECEPTACLE
020 001 23016455 ...SEAL RING
021 002 12052410 ..TERMINAL
022 001 12059716 ..CONNECTOR-BODY
023 001 12047664 ..LOCK
024 002 12047767 ..TERMINAL
025 001 12047662 ..CONNECTOR
026 001 12129691 ..SENSOR
027 001 NSS .COVER-SOLENOID
028 002 00103339 .WASHER
029 002 00454815 .BOLT
