Brand Name:Dahai
Condition:New
Applicable Industries:Machinery Repair Shops, Construction works
Marketing Type:New Product 2022
Size:standard
OEM Part Number :15302758
Material:stainless
Application:TEREX DUMP TRUCK,TR100,TR60,TR35,3305,3307

Engine:Commins K38

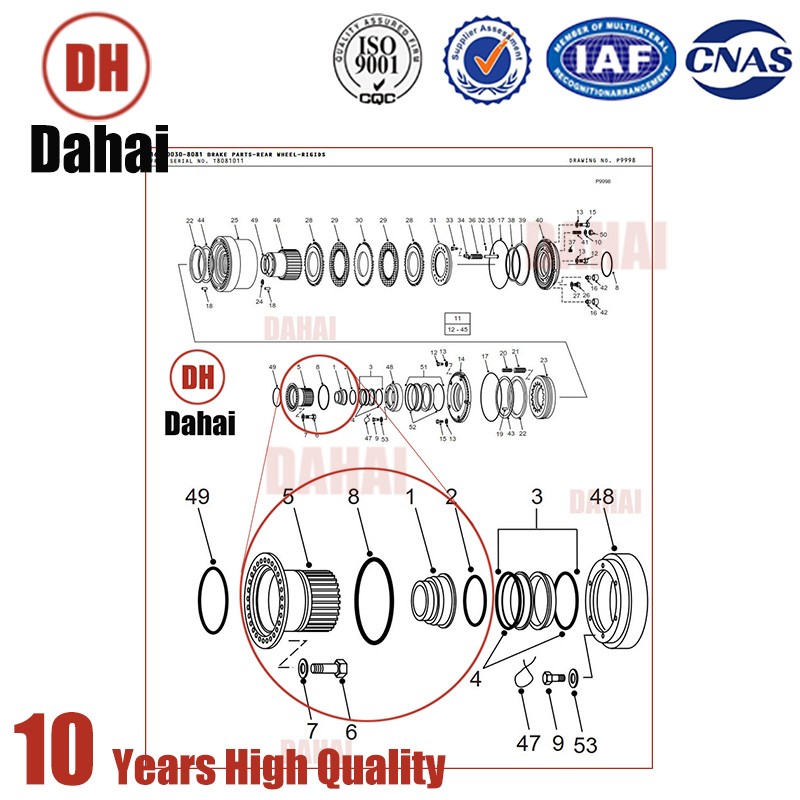

001 002 15233275 SEAL HOUSING
002 002 15302757 O RING
003 002 15302752 SEAL ASSEMBLY - FACE T
004 004 15272374 .RING-GTL TORIC
005 002 09064938 DRIVER WHEEL
006 060 00223493 BOLT
007 060 09019631 WASHER-HARDENED
008 004 15302758 O RING
009 024 09072627 BOLT
010 056 09270005 WASHER-HARDENED
011 002 15303569 BRAKE ASSEMBLY
012 196 00223437 .BOLT
013 216 09065332 .WASHER
014 002 15247047 .SRING HOUSING MACHIN
015 020 09068505 .SCREW
016 008 02276784 .SCREW-BLEED
A 017 004 15258053 .SEAL-O RING
018 004 00784094 .PIN-DOWEL
019 002 00784088 .PIN-DOWEL
020 054 09065306 .SPRING
021 054 09065305 .SPRING
B 022 002 15303608 .SEAL ASSEMBLY - PISTO
023 002 15302125 .PARKING PISTON
A 024 006 15258054 .SEAL-O RING
025 002 15302126 .DISC HOUSING
026 004 09183205 .PLUG
027 004 00274248 ..O RING
028 004 15302798 .DAMPER ASSEMBLY
029 026 15302796 .DISC - FRICTION
030 024 15302797 .PLATE - SPLINED
031 002 15231497 .SERVICE PISTON MACHI
032 048 00936559 .PIN
033 096 00179814 .BOLT
034 048 09064810 .PLATE-RETAINER
035 048 09064750 .PIN-RETAINING
036 048 09065315 .SPRING
037 004 00444692 .PLUG
A 038 002 15258051 .SEAL-D RING
A 039 002 15258038 .SEAL-D RING
040 002 15303570 .PISTON HOUSING ASSEMB
