Part No.: 9010662

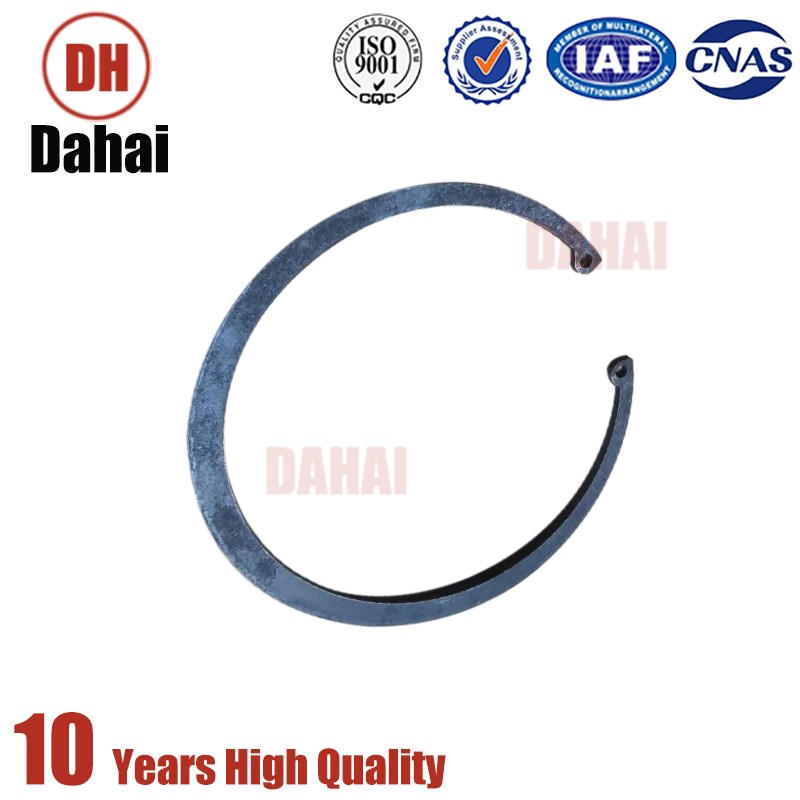

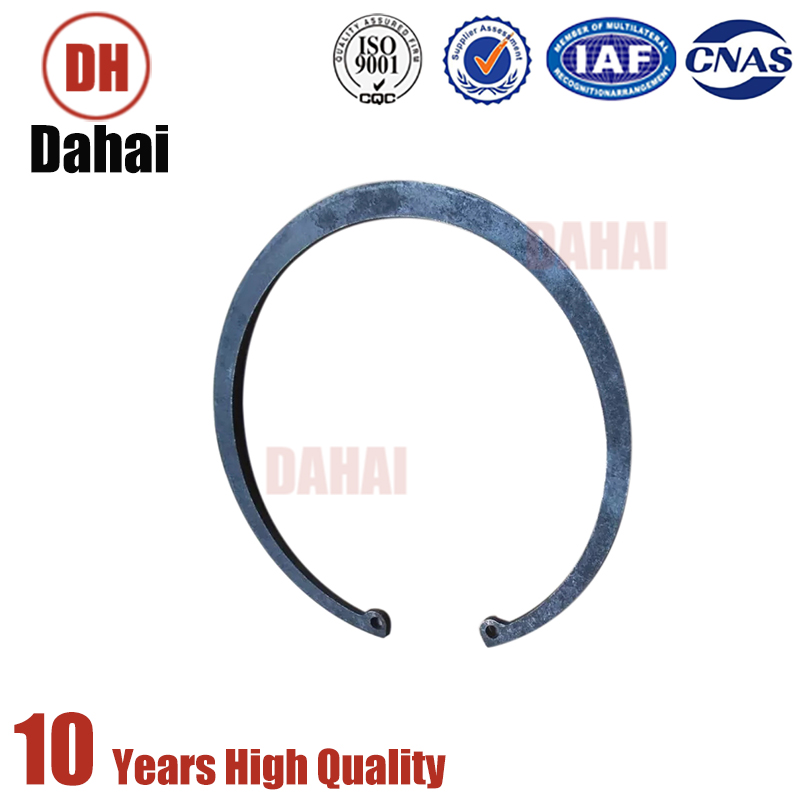

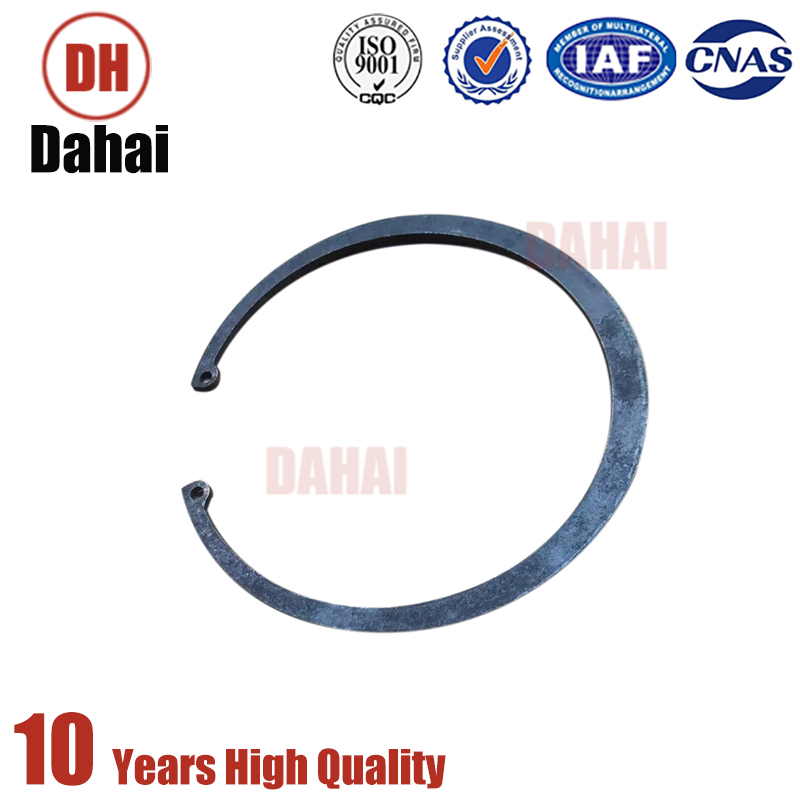

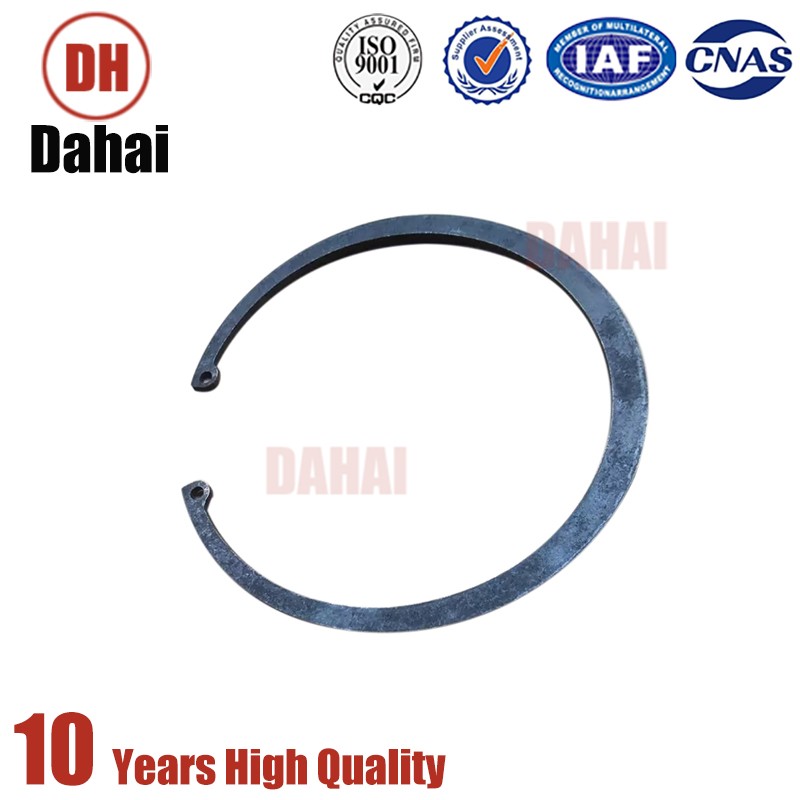

Product Name: Ring-Snap
Application: Suspension system parts
Place of Origin: Guangdong, China
Brand Name: DAHAI
Warranty: 1 Years
Size: Standard
MOQ: 1pcs
Quality: 100% Tested
Certification: ISO9001 IAF CNAS
Payment: Union Paypal TT
Shipping Term: DHL UPS FEDEX TNT EMS
Packing: Neutral Packing or According to Customer Requirements

Delivery time: 7 Days

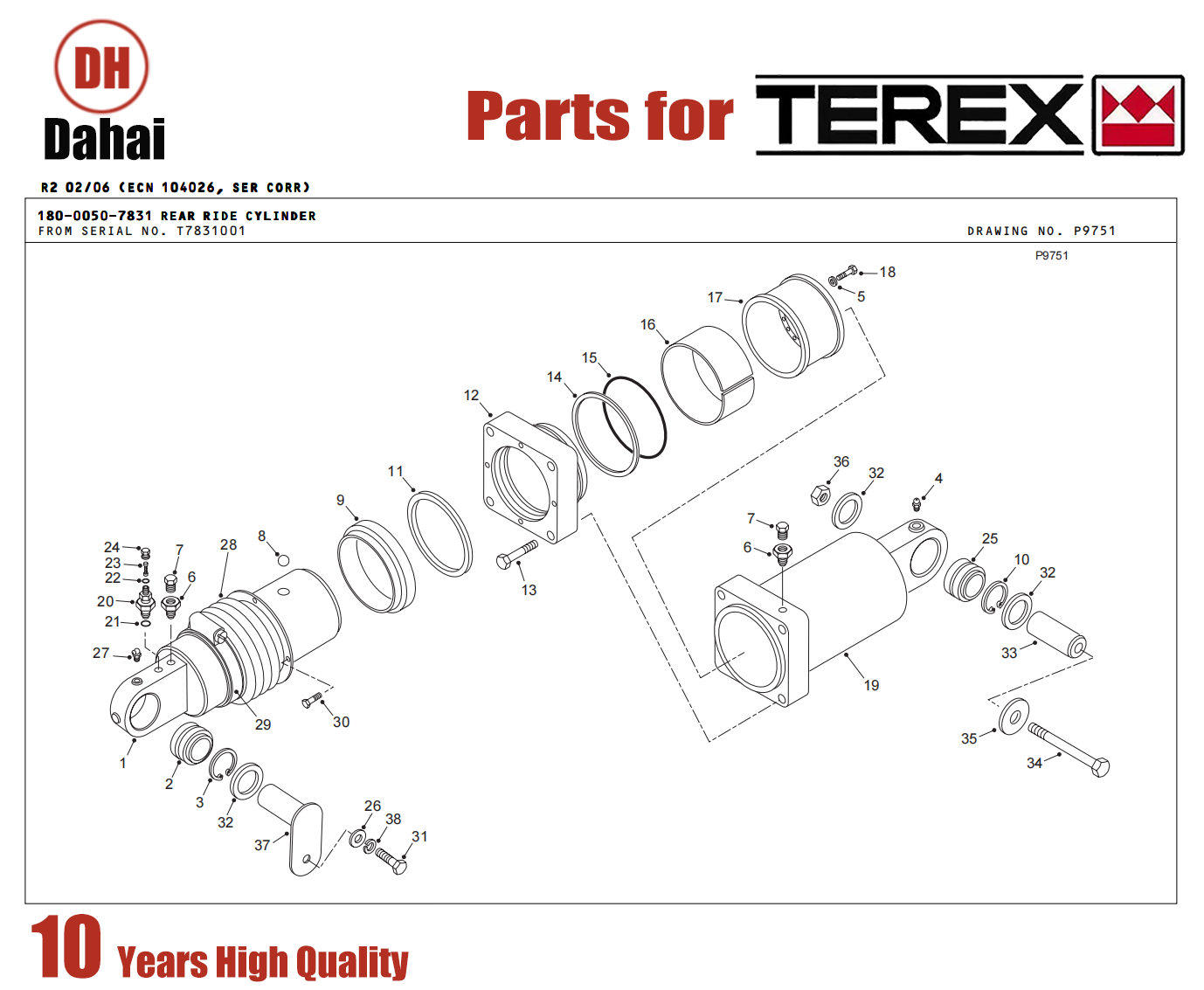

000 001 09079698 REAR CYL ASSY
001 001 09079696 .ROD
002 001 09010661 .BUSHING
003 002 09010662 .RING-SNAP
004 001 09411010 .FITTING-GREASE
005 020 09068666 .WASHER-HARDENED
006 002 09013688 .VALVE-CHECK
007 003 00444613 .PLUG
008 001 00169162 .BALL
009 001 09016787 .WIPER
010 002 09010662 .RING-SNAP
011 001 15237500 .SEAL
012 001 09069441 .RETAINER-SEAL
013 004 09423349 .BOLT HEX 1.25-7 UNC
014 001 09016784 .RING-BACKUP
015 001 09016783 .O RING
016 001 09016788 .RING-WEAR
017 001 09079697 .PISTON
018 020 09269710 .BOLT
019 001 09069437 .TUBE ASSY
020 001 06525035 .VALVE ASSY-RECHARGE
021 001 09030336 ..RING-LARGE
022 001 09190141 ..RING-SMALL
023 001 09034883 ..CORE
024 001 09035137 ..CAP
025 001 09010661 .BUSHING
026 001 09217321 WASHER-HARDENED
027 001 09411019 NIPPLE-GREASE
028 001 09384151 BOOT ASSY
029 002 09139825 .CLAMP
030 004 00179837 BOLT
031 001 00179883 BOLT
032 004 09015397 SPACER
033 001 15000838 PIN-RIDE CYLINDER
034 001 15019238 BOLT
035 002 15000991 WASHER
036 001 00273852 LOCKNUT
037 001 09015398 PIN ASSEMBLY

038 001 00103329 LOCKWASHER

000 001 15335710 CYLINDER ASSY-FRONT
001 001 09384099 .CAP-END
002 001 09411010 .FITTING-GREASE
003 001 09013688 .VALVE-CHECK
004 001 00444613 .PLUG
005 002 15016161 .O RING
006 002 09069472 .RING-BACKUP
007 001 09069476 .TUBE
008 020 09269710 .BOLT
009 001 09069475 .PISTON
010 001 09069468 .RING-PISTON
011 001 15335709 .ROD-PISTON
012 002 00169162 .BALL
013 001 15315332 .SEAL RETAINER
014 001 15233291 .SEAL
015 001 09222091 .O RING
016 016 00223457 .BOLT
017 016 09355771 .NUT
018 001 09383858 .TUBE ASSY
019 001 15250986 .RING-WEAR
020 001 06525035 .VALVE ASSY-RECHARGE
021 001 09030336 ..RING-LARGE
022 001 09190141 ..RING-SMALL
023 001 09034883 ..CORE
024 001 NSS ..CAP
025 001 09069467 .SEAL
026 001 09069466 .WIPER
027 020 09068666 .WASHER-HARDENED
028 001 00106671 .FITTING-RELIEF
029 001 15315331 .ANTI-EXTRUSION RING
030 001 15315333 .WEAR RING
031 006 09250715 WASHER-HARDENED
032 002 09019478 KEY-SHEAR
033 010 09423349 BOLT
034 014 09259718 WASHER-HARDENED
035 004 15244531 BOLT
036 001 09069958 COVER

037 006 00271617 BOLT
