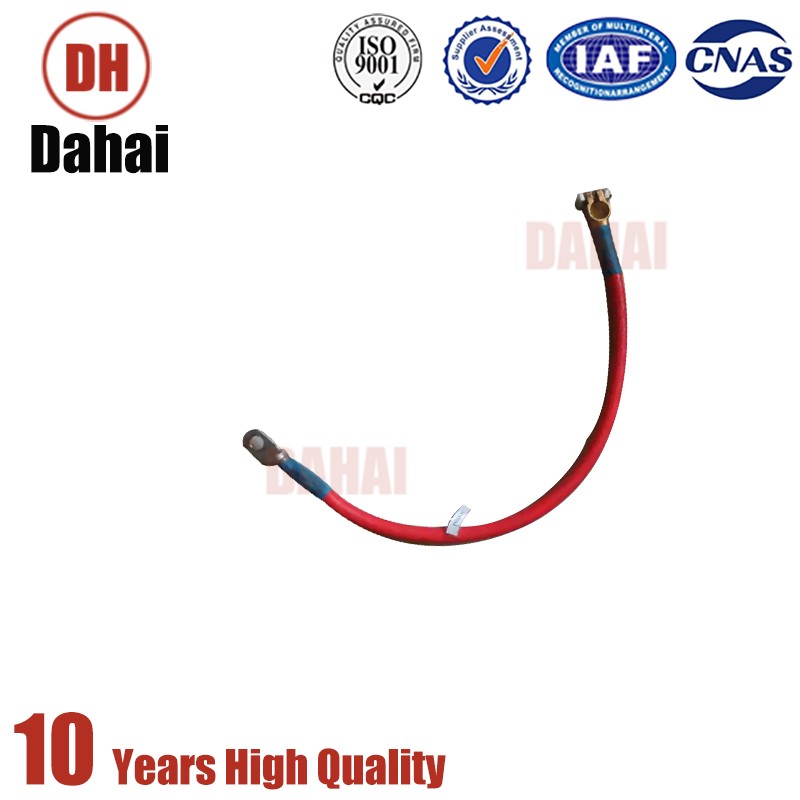

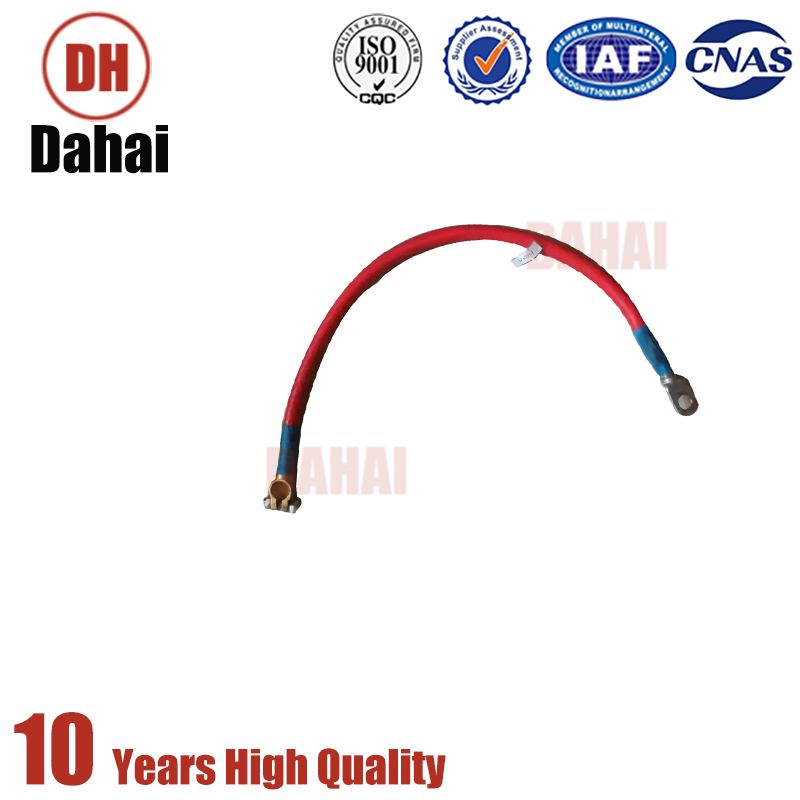

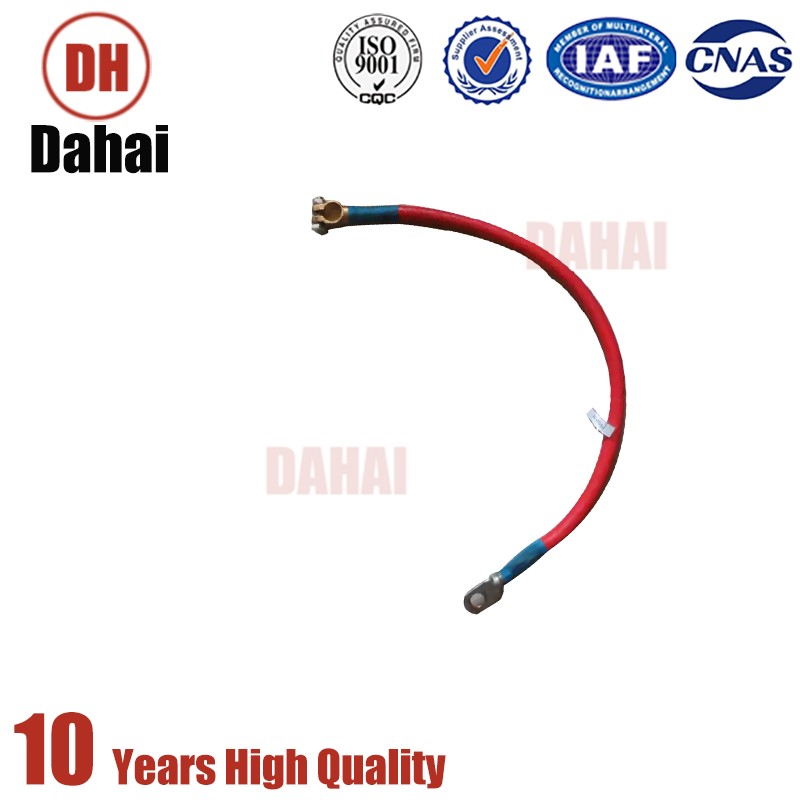

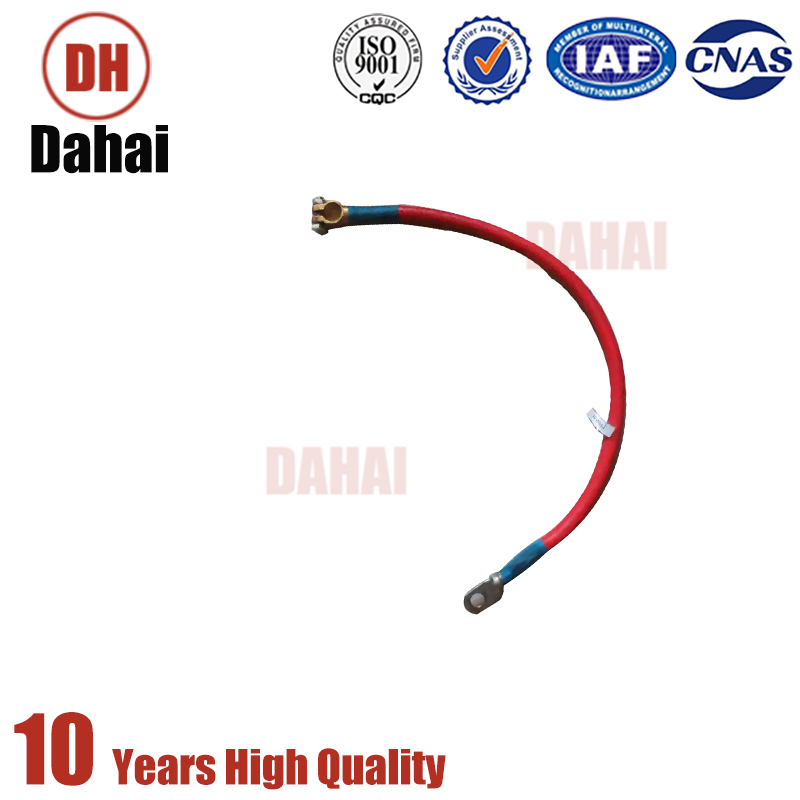

DAHAI Japan Terex  Battery Cable Assy

Part No.: 15309649
Product Name: Cable Assy
Application: Electrical System parts
Place of Origin: Guangdong, China
Brand Name: DAHAI
Warranty: 1 Years
Size: Standard
MOQ: 1pcs
Quality: 100% Tested
Certification: ISO9001 IAF CNAS
Payment: Union Paypal TT
Shipping Term: DHL UPS FEDEX TNT EMS
Packing: Neutral Packing or According to Customer Requirements
Delivery time: 7 Days

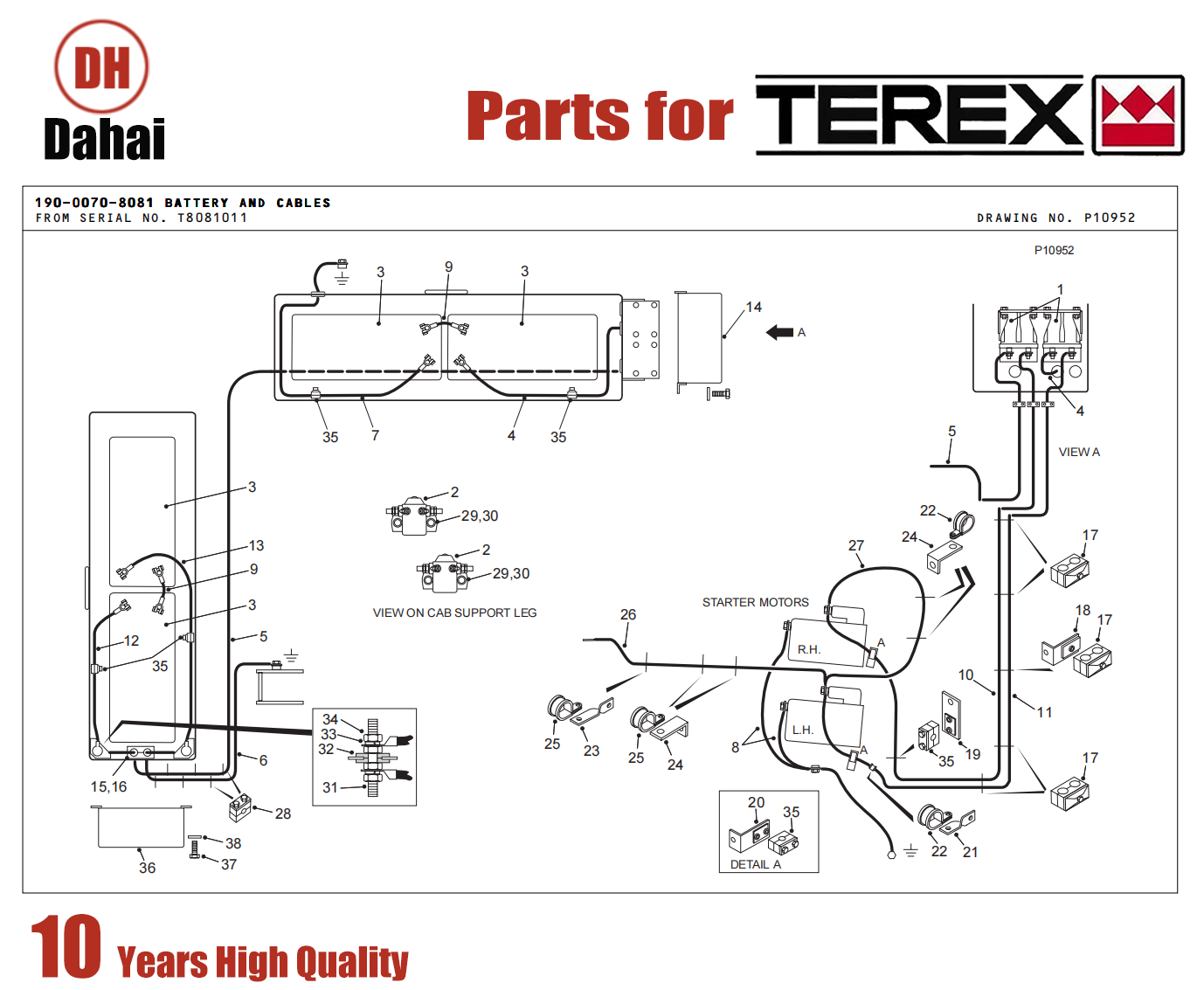

001 002 15258443 ISOLATOR RELAY
002 002 15305862 SWITCH-MAGNETIC
003 004 15022492 BATTERY-12 VOLT
004 001 15309636 CABLE ASSY
005 001 15309637 CABLE ASSY
006 001 15309638 CABLE ASSY
007 001 15309639 CABLE ASSY
008 002 15308025 CABLE ASSY
009 002 15232468 CABLE ASSY
010 001 15309640 CABLE ASSY
011 001 15309641 CABLE ASSY
012 001 15309649 CABLE ASSY
013 001 15309650 CABLE ASSY
014 001 15258745 COVER ASSY
015 001 15003251 CLAMP
016 002 15003260 BUSHING-SPLIT
017 005 15253870 CLAMP-PIPE
018 001 15301854 BRACKET ASSY
019 001 15311761 BRACKET ASSY
020 002 15308826 BRACKET ASSY
021 001 09254002 BRACKET
022 005 09131865 CLIP
023 002 09114833 BRACKET-TWISTED
024 005 09252839 PLATE-BENT
025 003 09157290 CLIP
026 001 15311766 CABLE ASSY
027 001 15311762 CABLE ASSY
028 004 15253875 CLAMP-PIPE
029 004 06350612 SCREW
030 004 07160630 WASHER
031 002 15300941 ROD-BRASS
032 004 15300379 BUSH
033 004 15252130 WASHER-SPRING
034 004 15252126 NUT
035 012 15253869 CLAMP
036 001 15311400 COVER
037 004 00179795 BOLT

038 004 00103339 WASHER

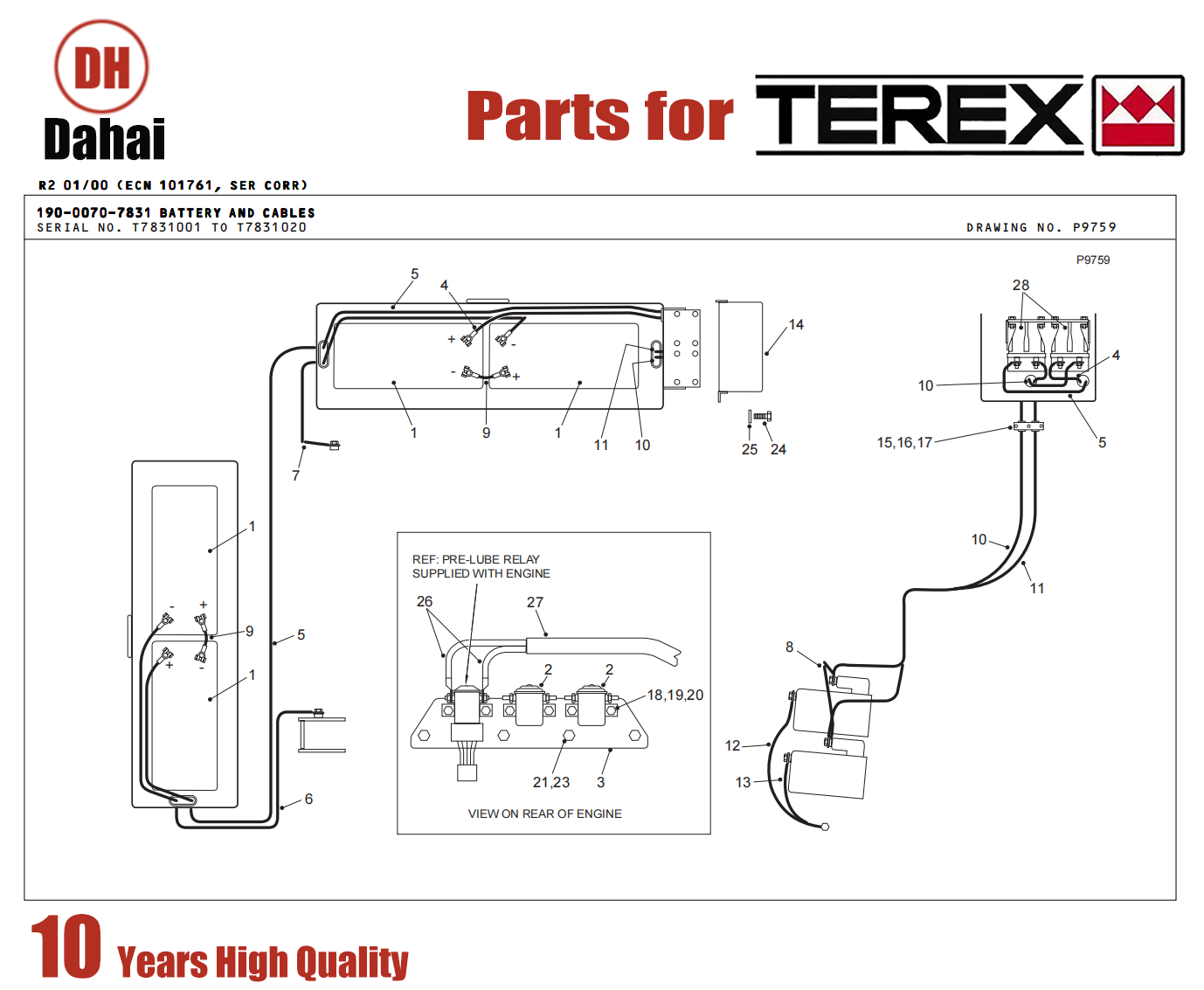

001 004 15022492 BATTERY-12 VOLT
002 002 15305862 SOLENOID-24V START
003 001 15301542 PLATE
004 001 15302350 CABLE ASSEMBLY
005 001 15302351 CABLE ASSEMBLY
006 001 15302352 CABLE ASSEMBLY
007 001 15302353 CABLE ASSEMBLY
008 001 15256097 CABLE ASSY
009 002 15232468 CABLE
010 001 15302354 CABLE ASSEMBLY
011 001 15302355 CABLE ASSEMBLY
012 002 15256096 CABLE ASSY
013 002 15256094 CABLE ASSY
014 001 15258745 COVER ASSEMBLY
015 002 15003251 CLAMP
016 004 15003260 BUSHING-SPLIT
017 004 00179827 BOLT
018 006 00179822 BOLT
019 006 00102635 NUT
020 006 00103320 LOCKWASHER
021 004 00179845 BOLT
022 008 00102635 NUT
023 012 00108580 LOCKWASHER
024 004 00179793 BOLT
025 004 00103319 LOCKWASHER
026 002 15302224 CABLE ASSEMBLY
027 ASR 15302225 CONDUIT

028 002 15258443 ISOLATOR RELAY
