190 ELECTRICAL SYSTEM

High quality Terex Pressure switch 15303318 TR100 for Terex

Place of Origin: China
Brand From: Japan
Brand Name: Dahai
Part No.: 15303318
Product Name: Switch-Pressure
Warranty: 1 Year
Marketing Type: Ordinary Product
Quality: 100% Japan JIS Tested
Application: Terex Dump Truck, TR100, TR60, TR45, TR40
Payment iterm: Bank transfer, Western Union, Money Gram, Credit Card,Paypal

  • Product Detail
  • Related products
  • Electrical system

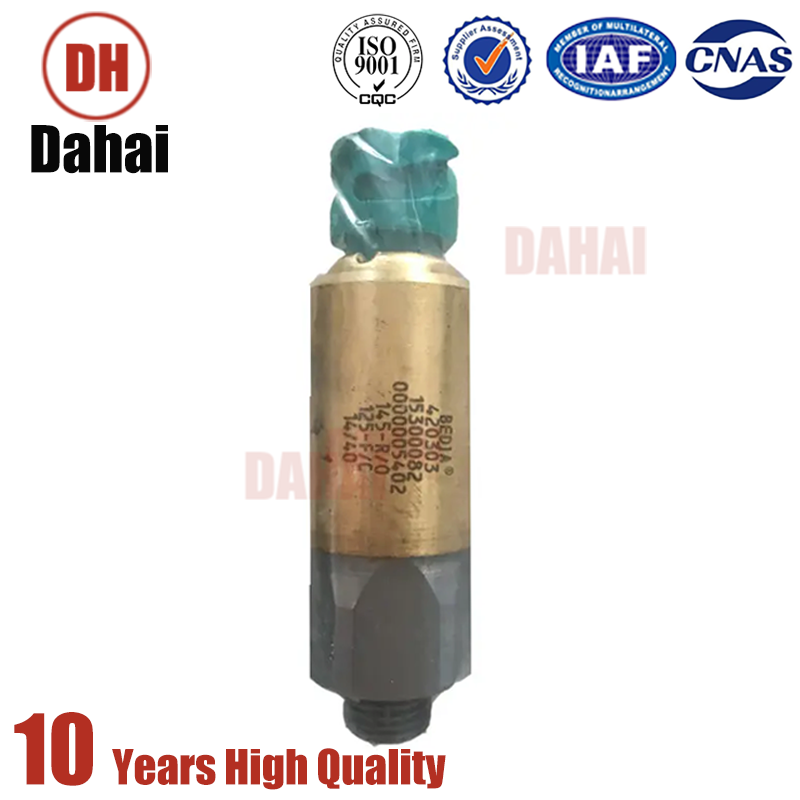

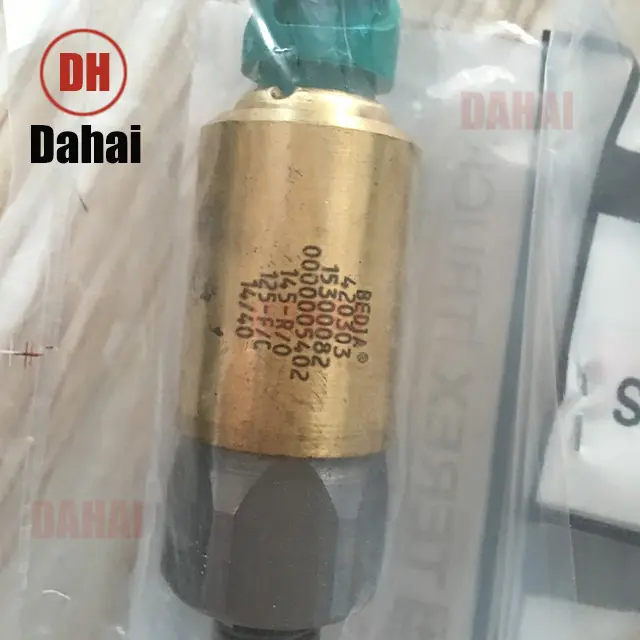

Part No.: 15303318
Product Name: Switch Pressure
Application: Electrical System parts
Place of Origin: Guangdong, China
Brand Name: DAHAI
Warranty: 1 Years
Size: Standard
MOQ: 1pcs
Quality: 100% Tested
Certification: ISO9001 IAF CNAS
Payment: Union Paypal TT
Shipping Term: DHL UPS FEDEX TNT EMS
Packing: Neutral Packing or According to Customer Requirements
Delivery time: 7 Days






001 001 15300412 SENDER-FUEL LEVEL
001 001 15319403 SENDER-FUEL LEVEL
002 001 15226394 COVER
002 001 15310614 COVER
003 001 15300082 SWITCH-PRESSURE
004 002 15300083 SWITCH-PRESSURE
005 001 15300084 SWITCH-PRESSURE
006 001 15300085 SWITCH-PRESSURE
007 001 15300086 SWITCH-PRESSURE
008 001 15300087 SWITCH-TEMPERATURE
009 002 15300090 SWITCH-PRESSURE
010 001 15300089 SWITCH-TEMPERATURE
011 001 15300088 SWITCH-PRESSURE
012 001 15303318 SWITCH-PRESSURE
013 001 15300116 SENDER-PRESSURE
014 001 15301960 SENDER-TEMPERATURE
015 001 15300118 SENDER-TEMPERATURE
016 001 15300119 SENDER-PRESSURE
017 002 15236152 SWITCH-LEVEL FLOAT
018 001 15301113 ADAPTER
019 001 15259165 SWITCH ASSY-BODY UP
020 001 15300933 BRACKET
021 002 00179797 BOLT
022 002 00103339 WASHER
023 002 00274856 LOCKNUT
024 006 15227711 SEAL
025 003 15301169 SEAL
026 004 15229742 SEAL
027 002 15301115 ADAPTER
028 002 15301114 ADAPTER
029 001 15304214 ELBOW
030 002 02222651 WASHER-FIBRE
031 001 15310396 SWITCH-TEMP

032 001 15250819 COOLANT LEVEL SENDER

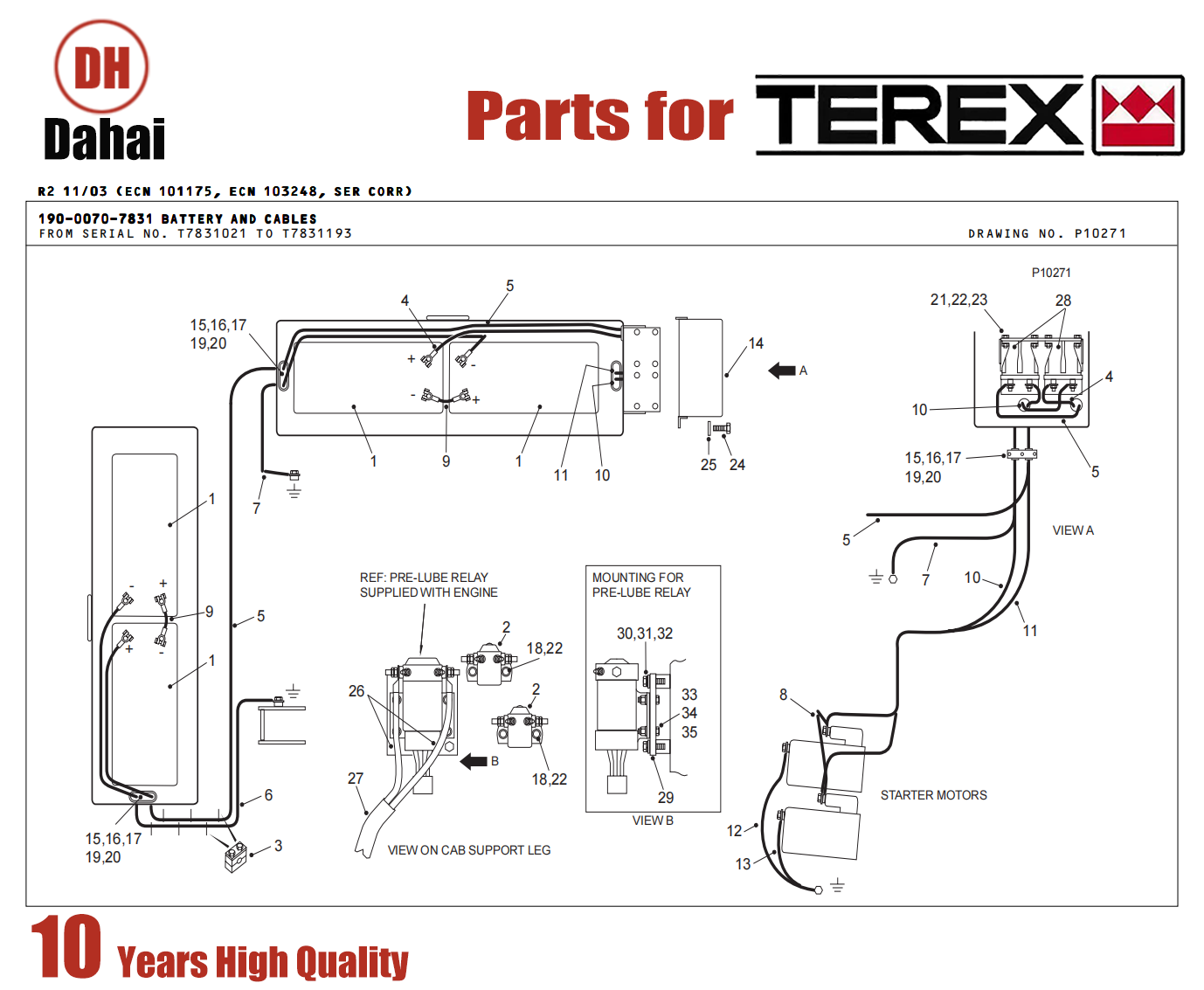

001 004 15022492 BATTERY-12 VOLT
002 002 15305862 MAGNETIC SWT-START SOL
003 006 15253875 CLAMP-PIPE
004 001 15302350 CABLE ASSEMBLY
005 001 15302351 CABLE ASSEMBLY
006 001 15302352 CABLE ASSEMBLY
007 001 15302353 CABLE ASSEMBLY
008 001 15256097 CABLE ASSY
009 002 15232468 CABLE
010 001 15302354 CABLE ASSEMBLY
011 001 15302355 CABLE ASSEMBLY
012 001 15256096 CABLE ASSY
013 001 15256094 CABLE ASSY
014 001 15258745 COVER ASSEMBLY
015 003 15003251 CLAMP
016 006 15003260 BUSHING-SPLIT
017 006 00179827 BOLT
018 004 06350612 SCREW
019 004 00102635 NUT T50
020 006 00103320 LOCKWASHER
021 004 00179845 BOLT
022 004 07160630 WASHER
023 012 00108580 LOCKWASHER
024 004 00179793 BOLT
025 004 00103319 LOCKWASHER
026 002 15304322 CABLE ASSEMBLY
027 ASR 15302225 CONDUIT 1" = 1 PIECE
028 002 15258443 ISOLATOR RELAY
029 001 15310266 PLATE-MTG
030 002 00179816 BOLT
031 002 00103340 WASHER
032 002 00103320 WASHER-LOCK
033 004 00179795 BOLT
034 004 00274856 NUT

035 004 00103319 WASHER
